H401-T-PAD

The Heated Flat Metal Plate can be positioned on any surface (Table Top, Cabinet work surface, etc) to create a temperature controlled flat surface.

Features

T range: 27 to 45°C

T sensor accuracy: ±0.1°C

T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C

Plate calibration can be performed in the lab by the operator

Dimensions:

  • 174x234 mm        H401-T-PAD-SMALL
  • 297x210 mm (A4) H401-T-PAD-MEDIUM
  • 420x300 mm (A3) H401-T-PAD-LARGE



Requires H401-T-CONTROLLER

Metal Plate in XY Stage

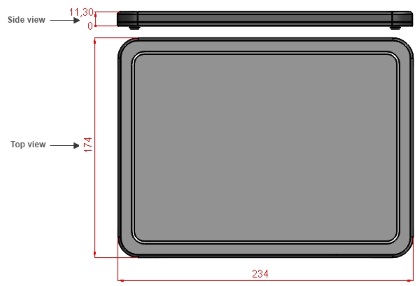

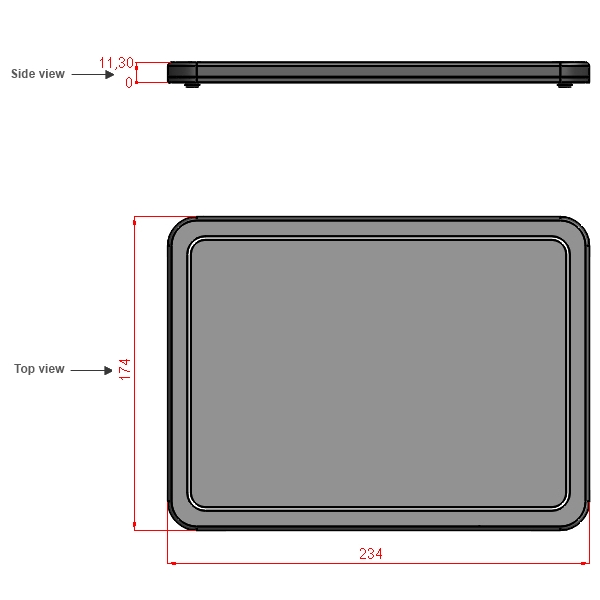

Dimensions

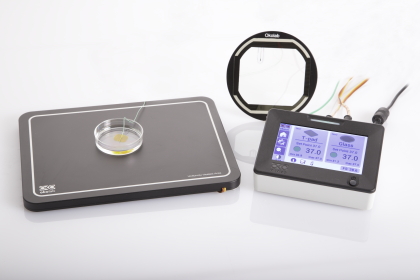

H401-T-PAD + Controller + Round Glass Insert

H401-T-CONTROLLER

T - range: from ambient to 60°C

External T - sensor (included)

On-board Data logging and download routines to USB drive

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy



On-Board Data Logging

Data Logging

On-Board Data Logging - stored in local memory

Download to USB

H401-T-CONTROLLER

2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.

On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.

The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.

Features

  • T - range: from ambient to 60°C
  • T - accuracy on specimen: ± 0.3°C
  • External T - sensor (included).
  • On-board Data logging and download routines to USB drive.
  • On-board logging of calibration and alarm events.
  • Alarm buzzer and External Alarm Connector
  • One controllers can control independently up to two devices.
  • Self calibration routines allow to improve temperature accuracy.
  • Password protected procedure for periodic calibration against certified thermometer
  • Integrated in third party software: Nikon NIS Elements; Metamorph; Micromanager




Touch Pad Interface

Touch Pad Interface

Beautifully designed, simple to use and very compact.

Clamp on stage T-Pad + Glass plate

Take advantage of the dual channel option

One channel controls the metal T-Pad.
The other channel controls the Glass Plate.

On board Data Logging / Download to USB

Data Logging

On-Board Data Logging - stored in local memory

A simple procedure allows to download data to USB.
