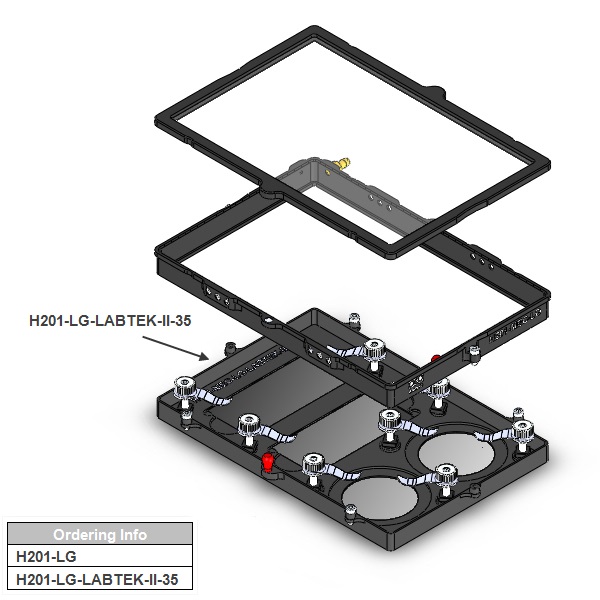

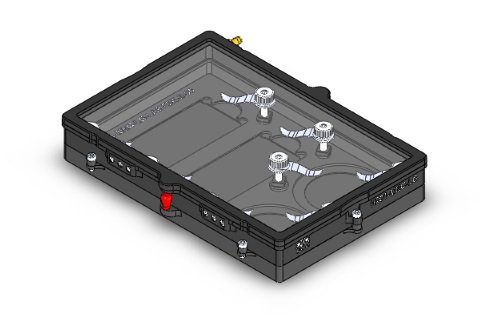

H201-LG

Stage compatibility: fits on the Leica Super Z galvo Stage (SP5/PS8)

The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates. One MW lock is required to hold the MW plate in the chamber
Features:
  • Total weight on galvo stage: 100 g with standard inserts
  • Total weight on galvo stage: 20 g with Multiwell insert
  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available for perfusion
  • The chamber fits on the XY stage and covers the Super Z galvo stage (SP5/SP8)




Available Inserts

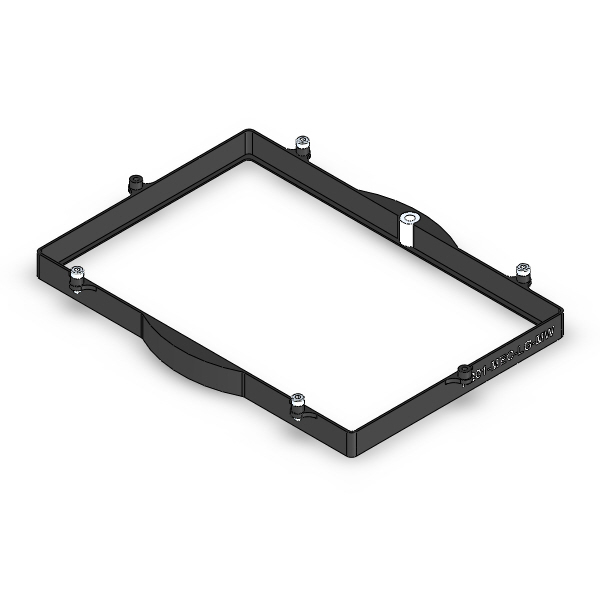

H201-MEC-LG-MW Multiwell plates holder H201-MEC-LG-MW.JPG

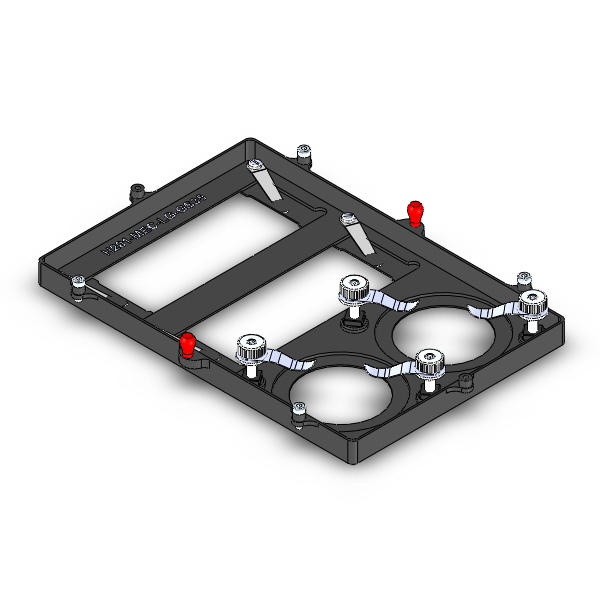

H201-MEC-LG-GS35 #2 1”x3” chamber slides and #2 35mm Petri-dish holder H201-MEC-LG-GS35.JPG

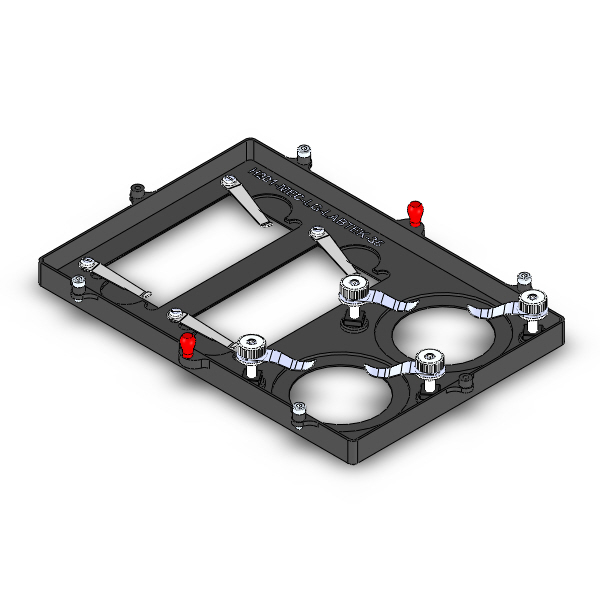

H201-MEC-LG-LABTEK-35 #2 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish H201-MEC-LG-LABTEK-35.JPG

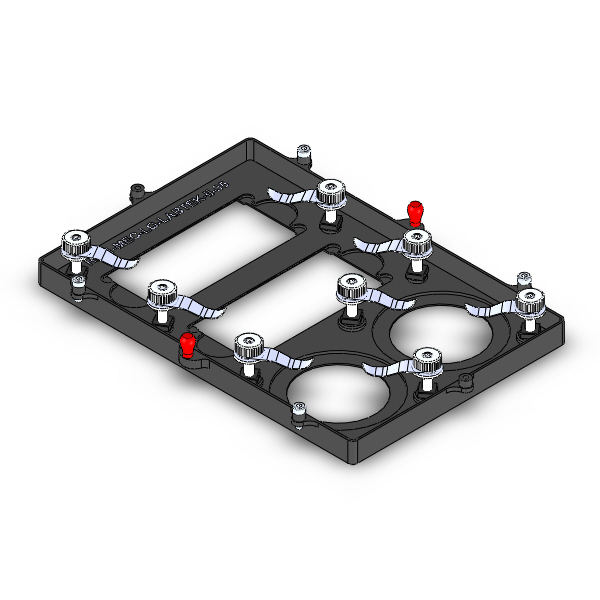

H201-MEC-LG-LABTEK-II-35 #2 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish H201-MEC-LG-LABTEK-II-35.JPG

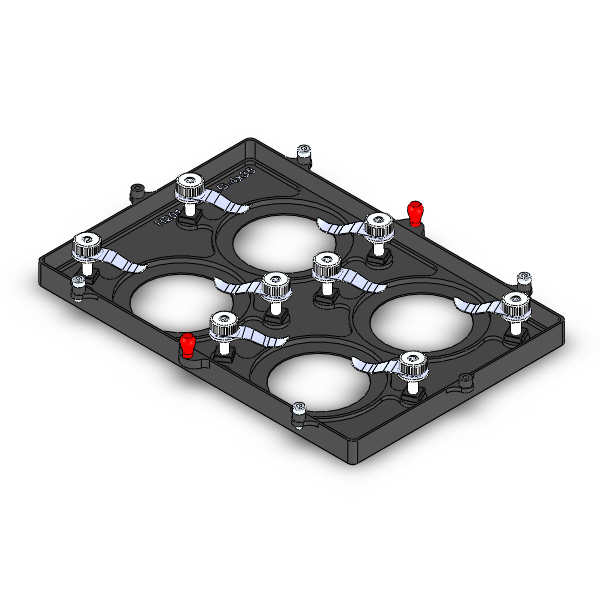

H201-MEC-LG-4x35 #4 35mm Petri-dish H201-MEC-LG-4x35.JPG

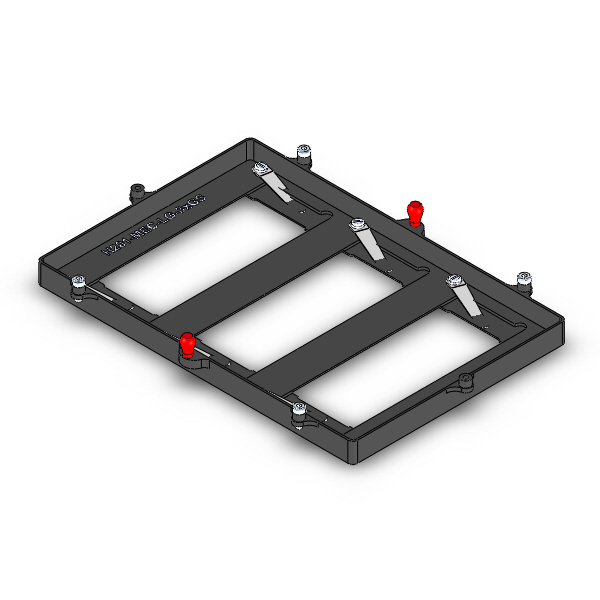

H201-MEC-LG-3xGS #3 1x3 in. chamber slides H201-MEC-LG-3xGS.JPG

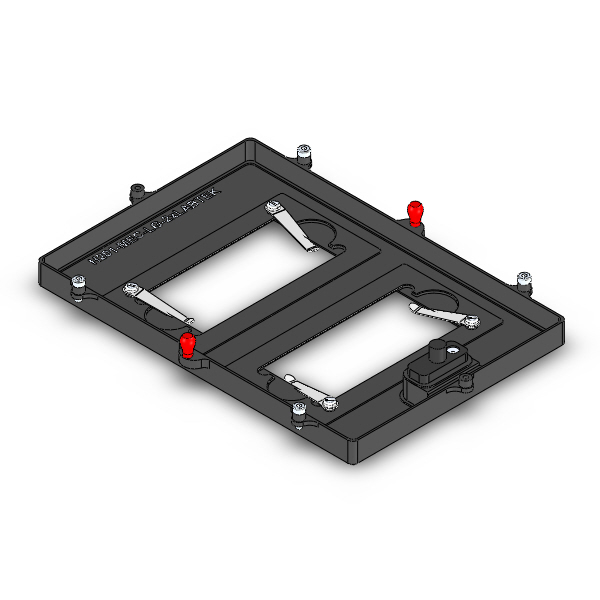

H201-MEC-LG-2xLABTEK #2 1x2 in. chambered cover glass H201-MEC-LG-2xLABTEK.JPG
H201-MEC-LG-2xLABTEK II #2 Lab-Tek II 1x2 in. chambered cover glass H201-MEC-LG-2xLABTEK II.JPG

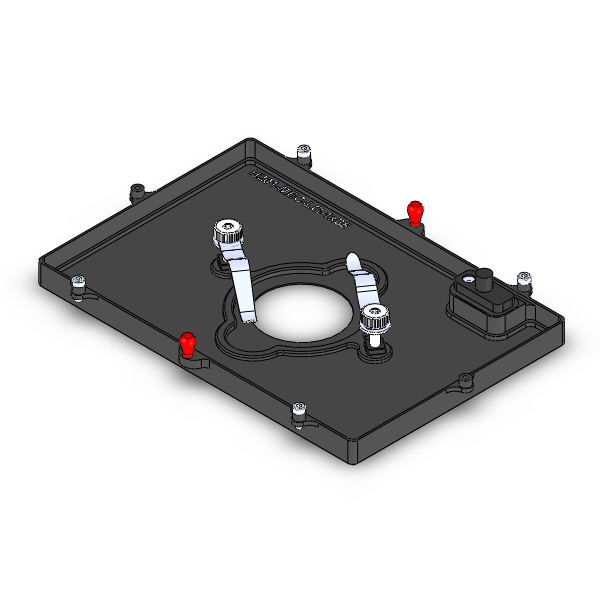

H201-MEC-LG-1x35 #1 35mm Petri-dish H201-MEC-LG-1x35.JPG

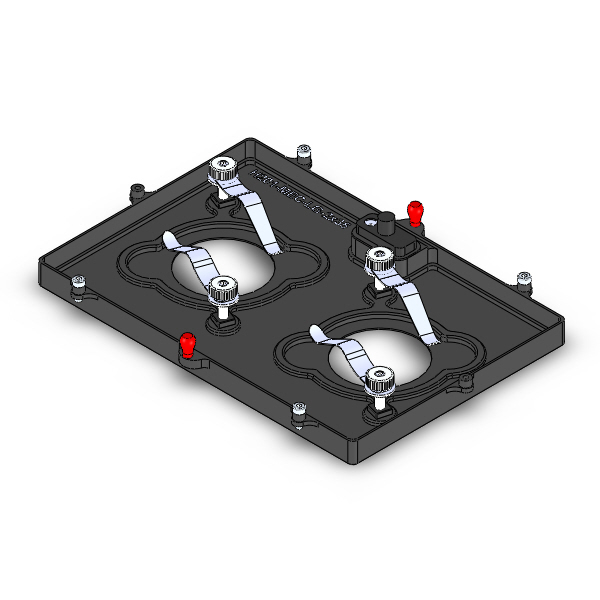

H201-MEC-LG-2x35 #2 35mm Petri-dish H201-MEC-LG-2x35.JPG

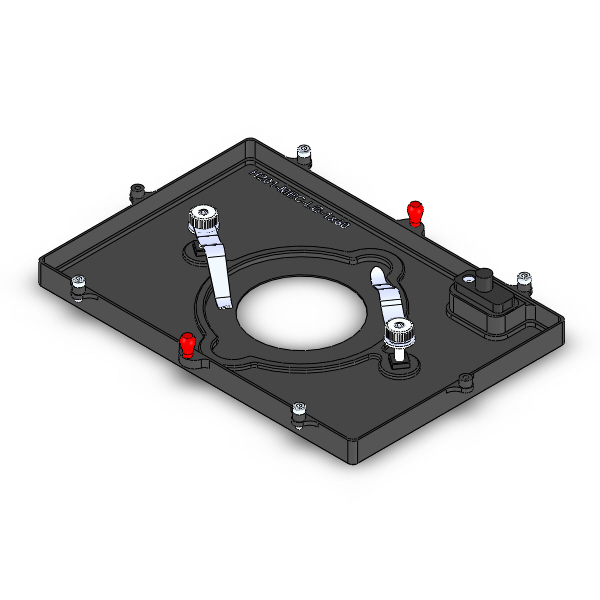

H201-MEC-LG-1x60 #1 60mm Petri-dish H201-MEC-LG-1x60.JPG

Available Drawings

H201-LG
H201-LG-PA_600x600

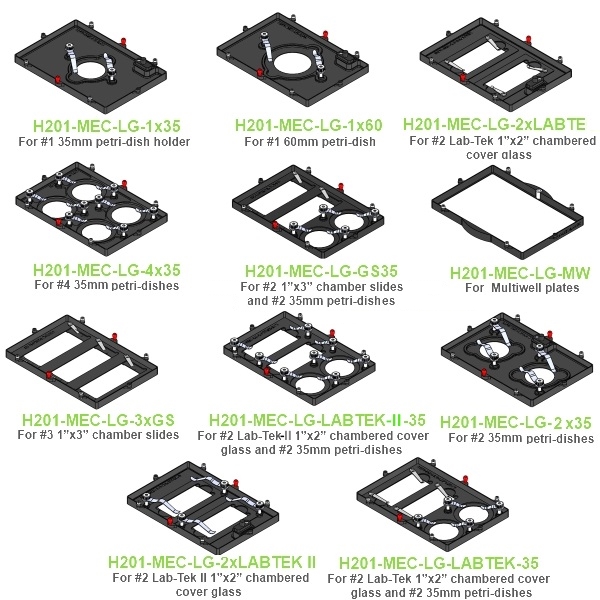

H201-LG - Available Inserts

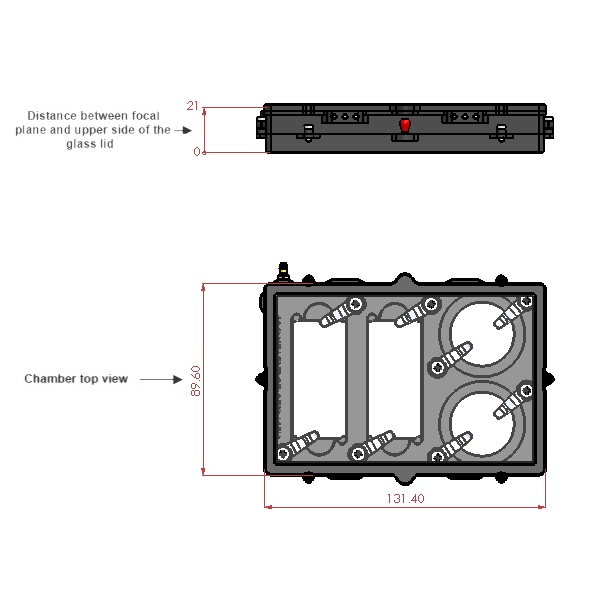

H201-LG - Dimensions
