H301-OLYMPUS-IX-SUSP

Stage compatibility: screws onto IX-SUSP, GX-SVR, GX-SFR, BX3-SSU, IX2-SFR, IX2-SVL-2 - comes with Sliding Lid

Magnetic inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
Features:
  • Sliding lid for easy pipetting
  • Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
  • Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
  • Magnets allow easy interchange of chamber inserts
  • Magnetic locks hold Petri and Slides in correct position inside the chamber
  • Perfusion holes: 8 channels for 2.5mm O.D. tubings are available in chamber riser.





Available Inserts

1x35-M single #1 35mm Petri-dish 1x35-M-single.JPG
1xGS-M-single #1 1x3in. chamberslide 1xGS-M-single.JPG
1xLABTEK-M-single #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M-single.JPG
1xLABTEK-II-M-single #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-single.JPG
1x60-M-single #1 60mm Petri-dish 1x60-M-single.JPG

Available LIDs

H301-KOEHLER LID-2 Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H301-KOEHLER-LID-2.JPG
H301-INJECTION-LID-2 Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen. Compatible only with specimen holder 1x35 H301-INJECTION-LID-2.JPG
H301-LASER-INTERLOCK-LID-2 Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted. Compatible only with specimen holder 1x35 H301-LASER-INTERLOCK-LID-2.JPG

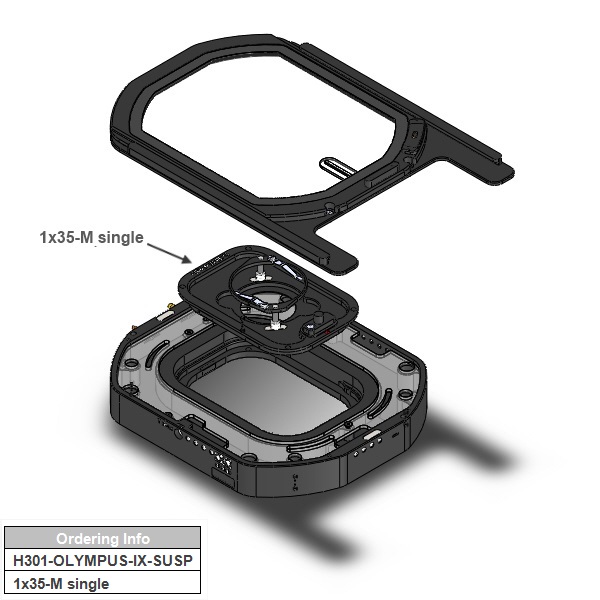

H301-OLYMPUS-IX-SUSP with Sliding Lid
H301-OLYMPUS-IX-SUSP with Koehler Lid
H301-OLYMPUS-IX-SUSP - Available Lids

H301-OLYMPUS-IX-SUSP- Dimensions with Sliding Lid

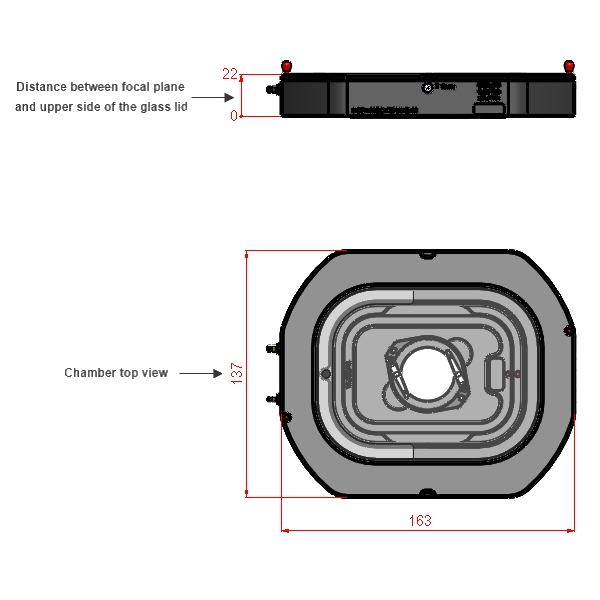

H301-OLYMPUS-IX-SUSP- Dimensions with Koehler Lid
H301-OLYMPUS-IX-SUSP - Magnetic Inserts
