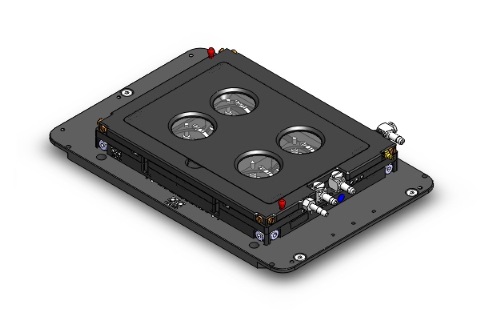

Okolab - H101-NIKON-TI-S-ER

Stage compatibility: screws onto Nikon Ti-S-E and Ti-S-ER

Magnetic interchangeable inserts allow to use:

35/60 mm Petri
1x3 in. / 1x2 in. chambered slides
6-12-24-48-96 MW plates (without addition of inserts). One MW lock is required to hold the MW plate in the chamber

Features:

Chamber heated by means water circulation in water tight channels present in the main body and in the lid
Flexible chamber height thanks to the removable chamber riser
Magnets allow easy interchange chamber inserts
It contains also an insert for oil immersion imaging
Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

Available Inserts

MW-LOCK-22.5	Magnetic lock to hold the standard MW plates in the chamber
MW-LOCK-16.5	Magnetic lock to hold the low-profile MW plates in the chamber

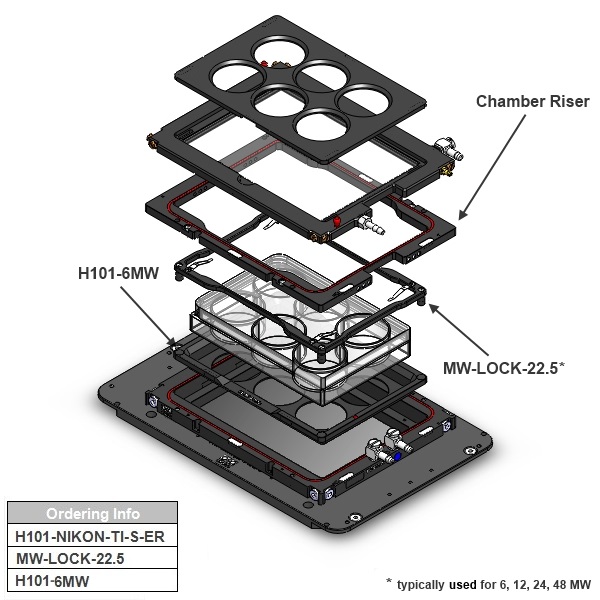

H101-6MW	6 well plates. One MW LOCK required
H101-12MW	12 well plates. One MW LOCK required
H101-24MW	24 well plates. One MW LOCK required
H101-24MW-NUNC	24-well NUNC/GREINER plates. One MW LOCK required
H101-48MW	48-well plates. One MW LOCK required
H101-96MW	96-well plates. One MW LOCK required
H101-1x35-M	#1 35mm Petri-dish
H101-1xGS-M	#1 1x3in. chamberslide
H101-1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass
H101-1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass
H101-1x60-M	#1 60mm Petri-dish
H101-1xT25-M	#1 Nunc and Greiner T25 flask
H101-2x35-M	#2 35mm Petri-dish
H101-2xGS-M	#2 1x3in. chamberslides
H101-2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass
H101-2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass
H101-2x60-M	#2 60mm Petri-dish

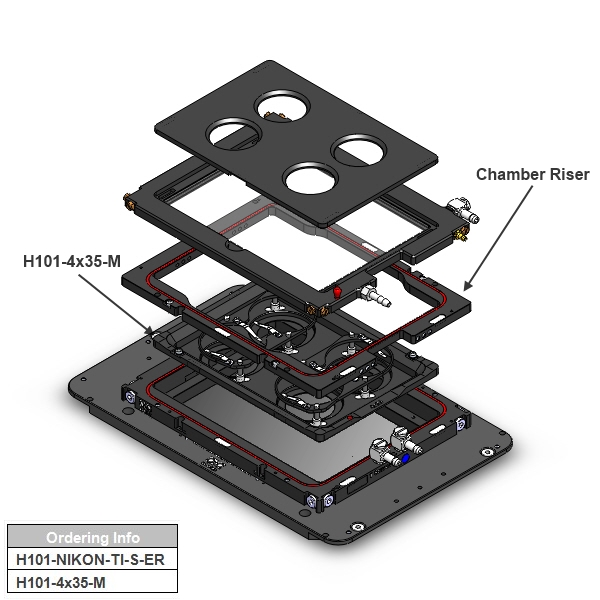

H101-4x35-M	#4 35mm Petri-dish
H101-GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish
H101-LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish
H101-LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish
H101-LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish
H101-6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish
