H301-DUAL-GAS

Stage compatibility: any stage with 110x160mm insert

The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
Features:
  • The chamber features two gas compartments each one with a dedicated gas inlet.
  • O-rings ensure no gas exchange between the two gas compartments.
  • The chamber is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid.
  • Magnets allow easy interchange of specimen holders.



Available Inserts

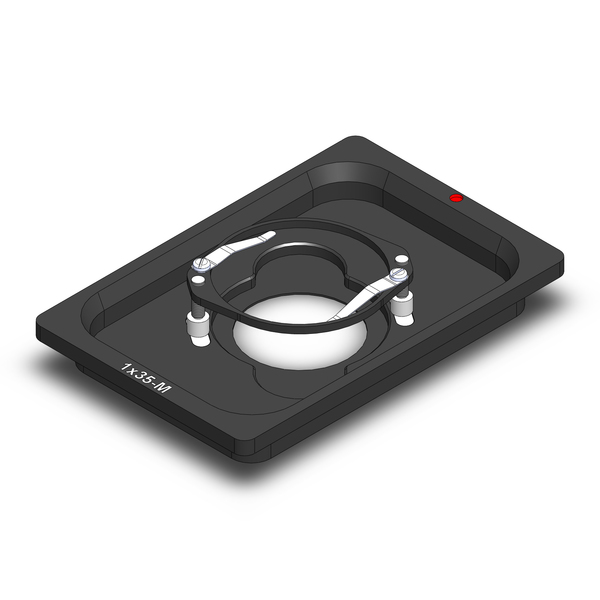

DUAL-GAS-1x35-M #1 35mm Petri-dish. Set of two, one per compartment. DUAL_GAS-1x35-M.JPG

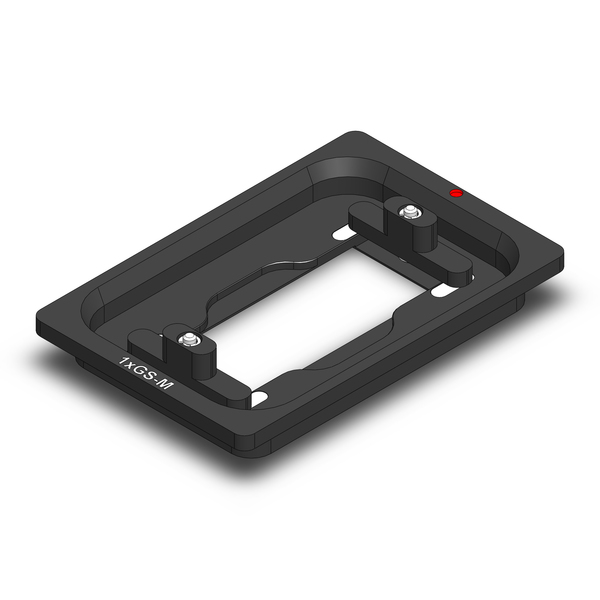

DUAL-GAS-1xGS-M #1 1x3in. chamberslide. Set of two, one per compartment. DUALGAS_1xGS-M.JPG

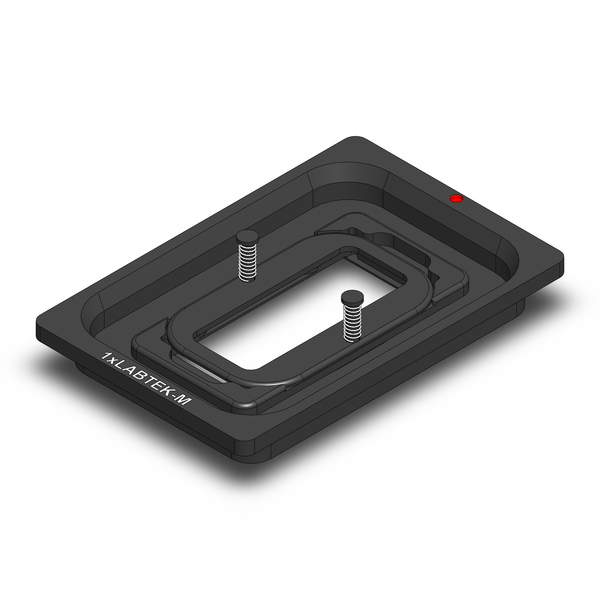

DUAL-GAS-1xLABTEK-M #1 Lab-Tek 1”x2” chambered coverglass holder. Set of two, one per compartment. DUAL_GAS-1xLABTEK-M.JPG
DUAL-GAS-1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered coverglass holder. Set of two, one per compartment. DUAL_GAS-1xLABTEK-II-M.JPG

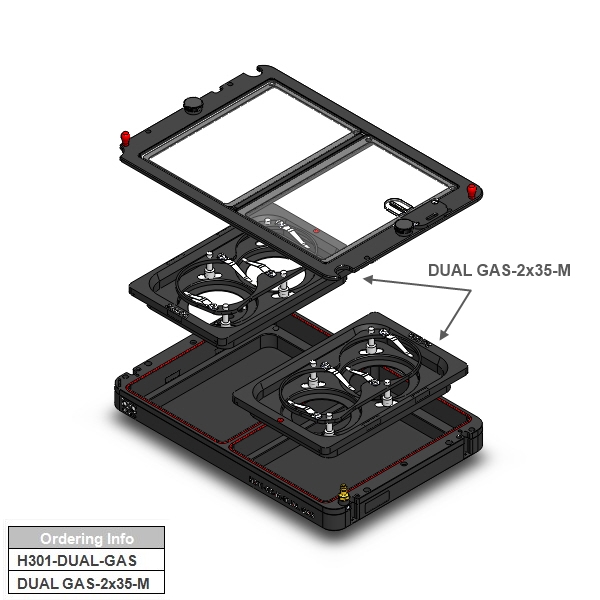

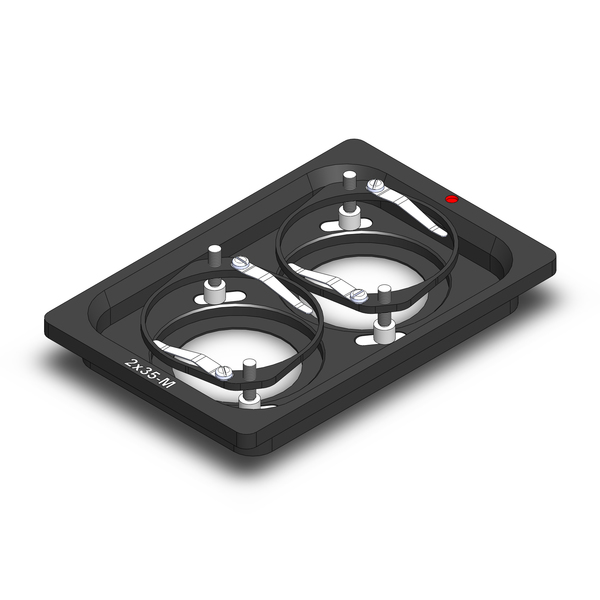

DUAL-GAS-2x35-M #2 35mm Petri-dish holder. Set of two, one per compartment. DUAL_GAS-2x35-M.JPG

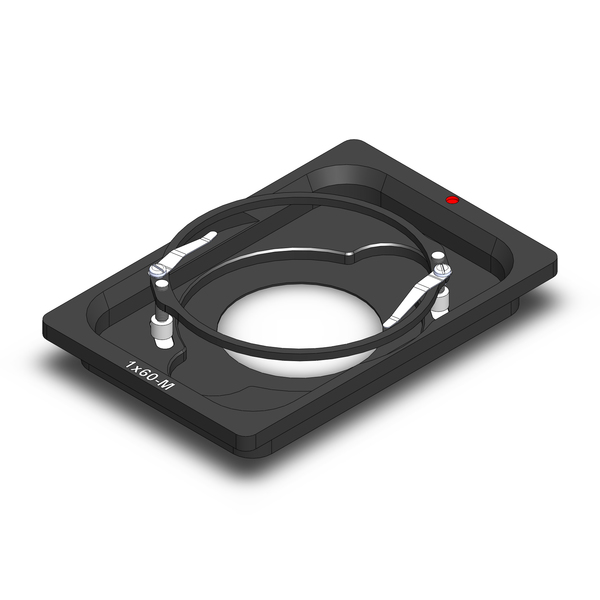

DUAL-GAS-1x60-M #1 60 mm Petri-dish holder. Set of two, one per compartment. DUAL_GAS-1x60-M.JPG

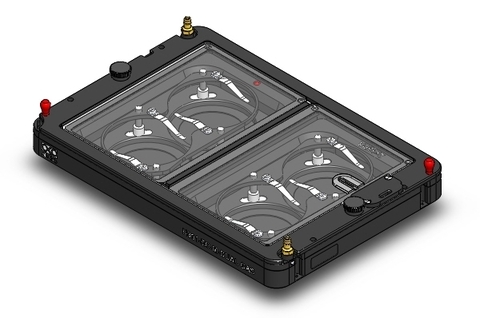

H301-DUAL-GAS

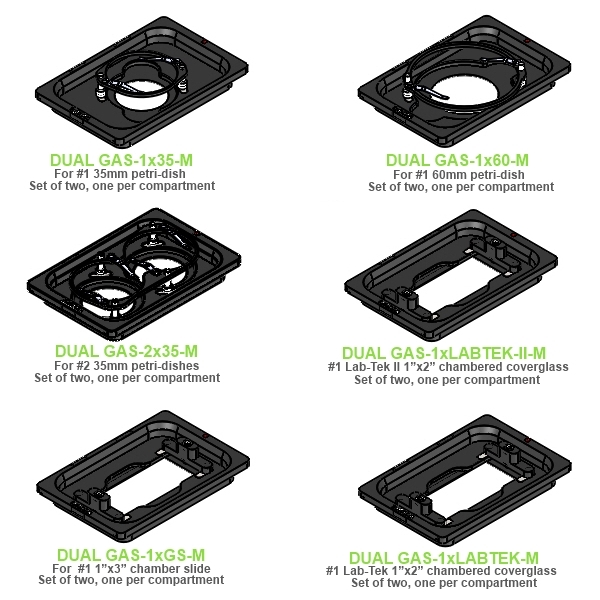

H301-DUAL-GAS - Available Inserts

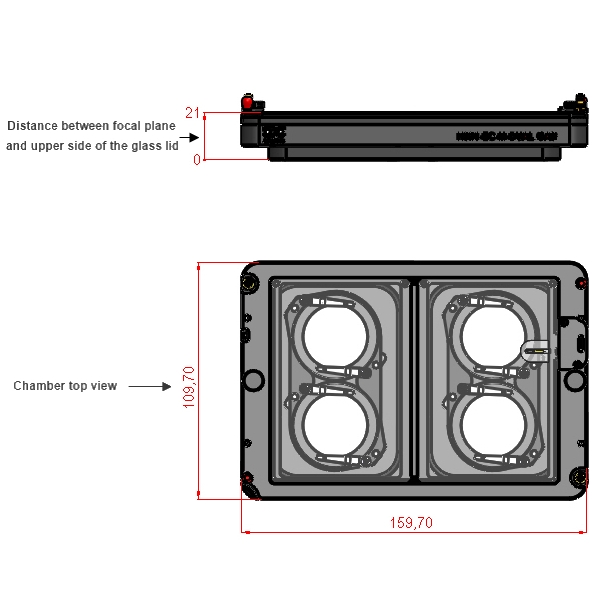

H301-DUAL-GAS - Dimensions
