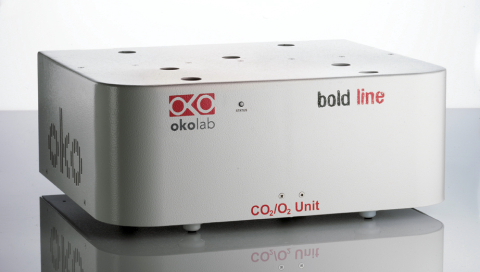

CO2-O2 Unit-BL [0-20;1-95]

CO2-O2 Unit-BL [0-20;1-95] connects to any Bold Line Temperature Controller and is operated by the touch screen interface OKO-TOUCH. It is compatible with Active Humidity Controller HM-ACTIVE. It mixes CO2, O2 and N2 with digital flow rate controllers.

  • Mixes CO2, O2 and N2
  • CO2 range: 0-20%; O2 range: 1-95%
  • CO2 Accuracy: ± 0.2% at 5% CO2 and 5% O2O2 Accuracy: ± 0.3% at 5% CO2 and 5% O2
  • Set Point Resolution: 0.1%
  • Output flow rate: 0.2, 0.3 or 0.4 Nl/min, depending on Oxygen set point. Outlet Pressure: ambient
  • Digital Flow Meters: CMOS Sensors
  • Compatible with Active Humidity Controller
  • Compatible with Smart Box for data logging and remore operation
  • Programmable CO2 and / or O2 cycles
  • Drivers available for: NiS Elements, Metamorph, Micromanager
  • SDK available for integration in third party software
  • TTL communication: order CO2-O2-UNIT-BL-[0-20;1-95]-TTL
