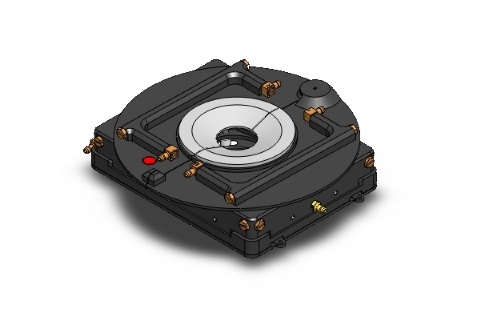

H101-UP

Stage compatibility: fits on Upright Microscopes
  • Part number of the objectives in use must be specified in purchase order
  • XY stage model and serial number must be specified in purchase order
The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
Features:
  • Suitable for dipping lens
  • Manageable chamber thanks to the opening of the lid to introduce the objective
  • Magnets allow easy interchange chamber insert
  • Magnetic locks hold Petri, Slides in correct position inside the chamber
  • Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
  • To control the humidity into the chamber humidity module is recommended: HM-ACTIVE




Available Inserts

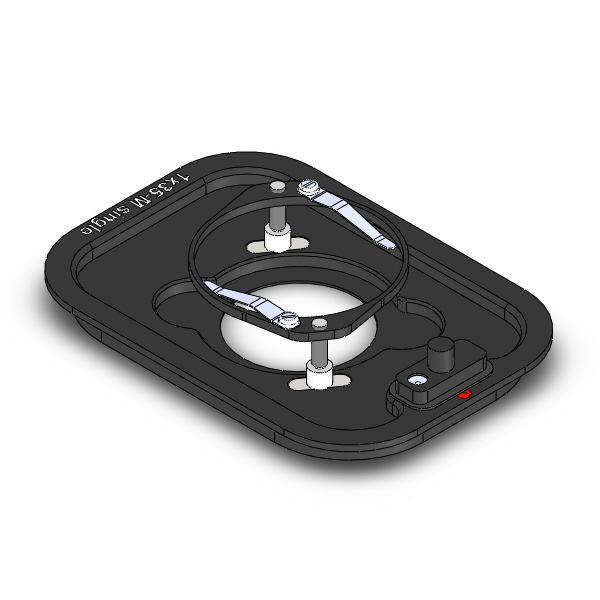

UP-1x35-M #1 35mm Petri-dish UP-1x35-M.JPG

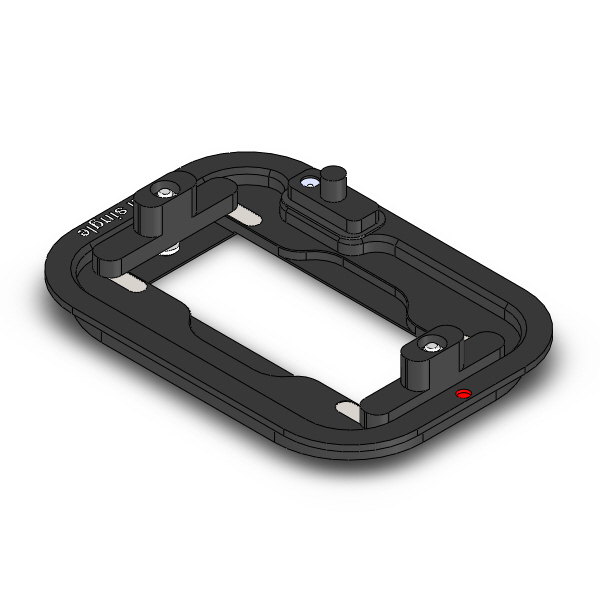

UP-1xGS-M #1 1x3in. chamberslide UP-1xGS-M.JPG

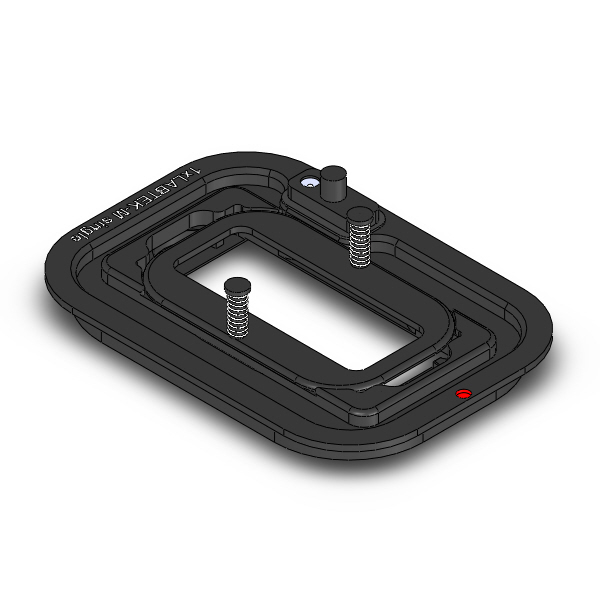

UP-1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass UP-1xLABTEK-M.JPG
UP-1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass UP-1xLABTEK-II-M.JPG

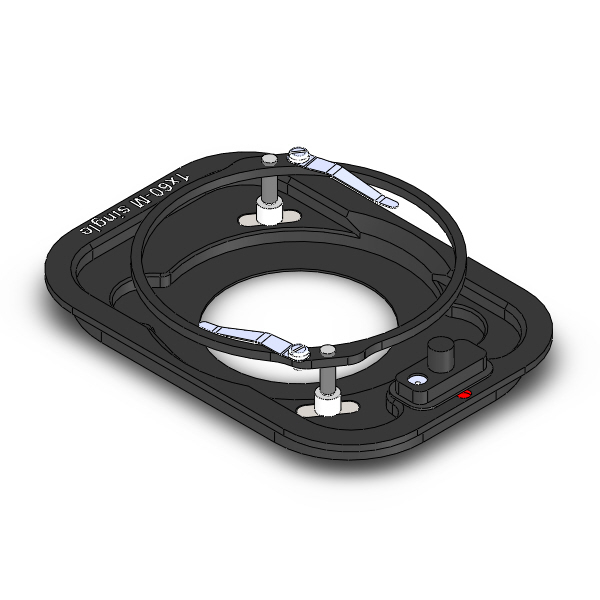

UP-1x60-M #1 60mm Petri-dish UP-1x60-M.JPG

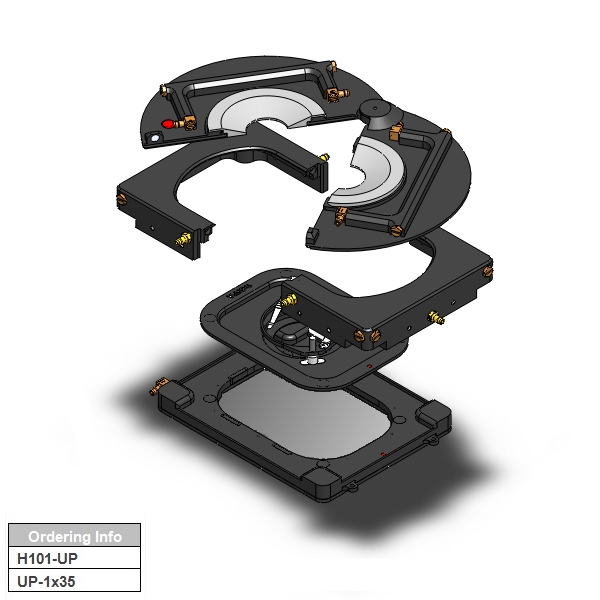

H101-UP - Components

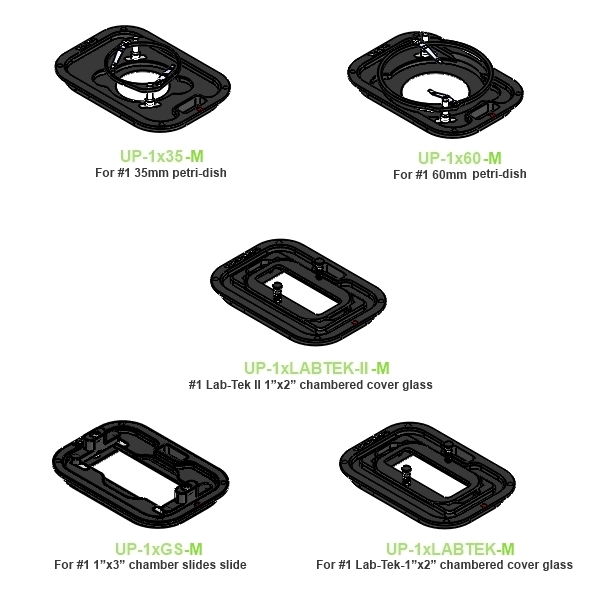

H101-UP - Available inserts

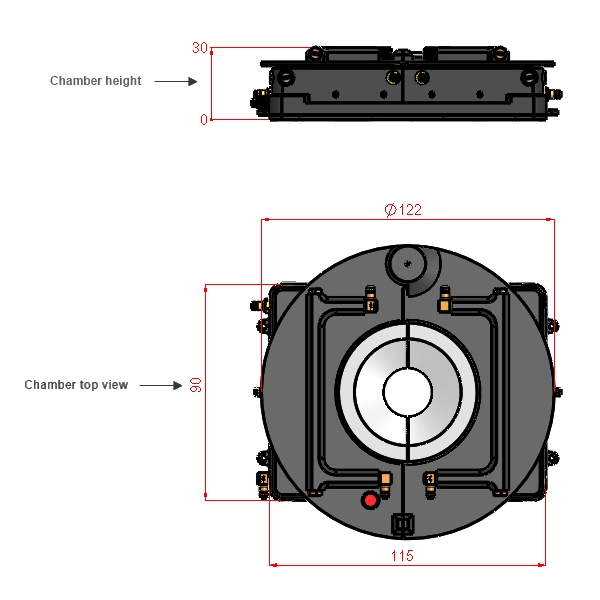

H101-UP - Dimensions
