Screws onto Nikon T and Ti-SR - comes with Sliding Lid
Magnetic inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • Sliding lid for easy pipetting
  • Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
  • Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
  • Magnets allow easy interchange of chamber inserts
  • Magnetic locks hold Petri and Slides in correct position inside the chamber
  • Perfusion holes: 8 channels for 2.5mm O.D. tubings are available in chamber riser.
  • The chamber screws onto the Nikon T and Ti-SR rectangular stage with circular opening

Available Inserts

1x35-M-single #1 35mm Petri-dish 1x35-M-single.JPG
1xGS-M-single #1 1x3in. chamberslide 1xGS-M-single.JPG
1xLABTEK-M-single #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M-single.JPG
1xLABTEK-II-M-single #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M-single.JPG
1x60-M-single #1 60mm Petri-dish 1x60-M-single.JPG

Available LIDs

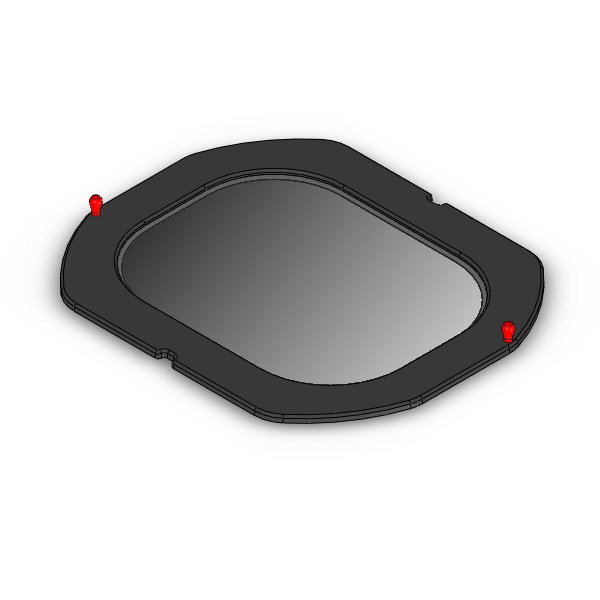

H201-KOEHLER-LID-2 Glass lid that reduces the height of the chamber to 22 mm.It allows to work under Koehler illumination  H201-KOEHLER-LID-2.JPG
H201-INJECTION-LID-2 Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H201-INJECTION-LID-2.JPG

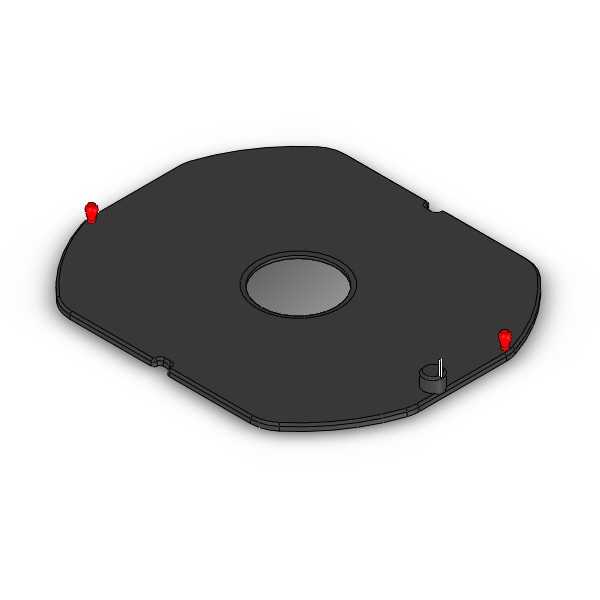

H201-LASER-INTERLOCK-LID-2 Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H201-LASER-INTERLOCK-LID-2.JPG

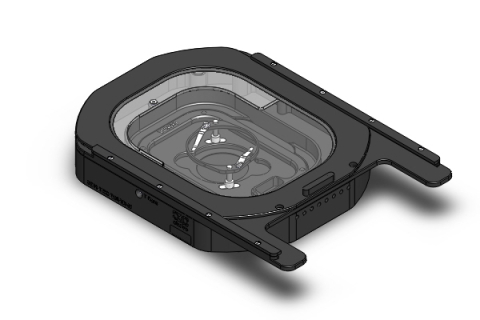

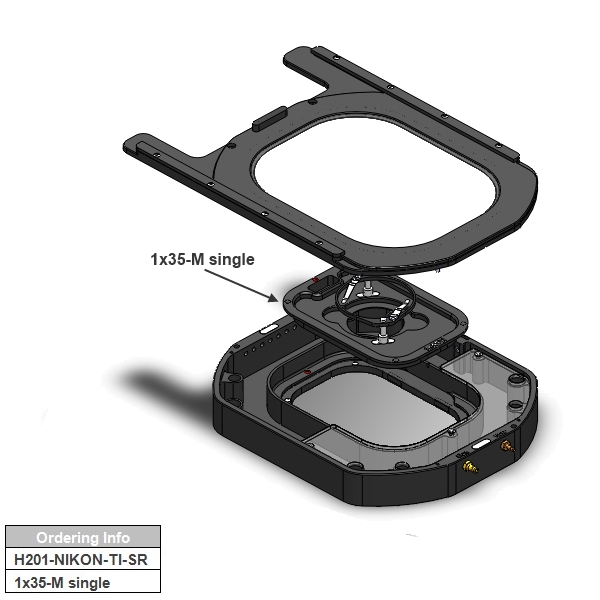

H201-NIKON-TI-SR with Sliding Lid

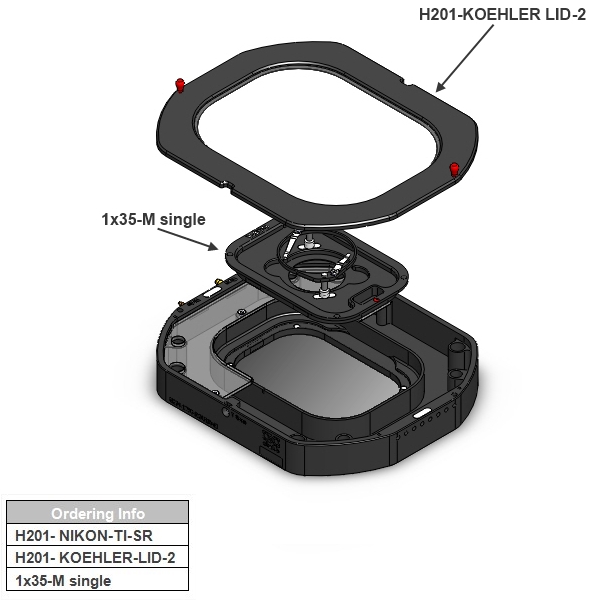

H201-NIKON-TI-SR with Koehler Lid

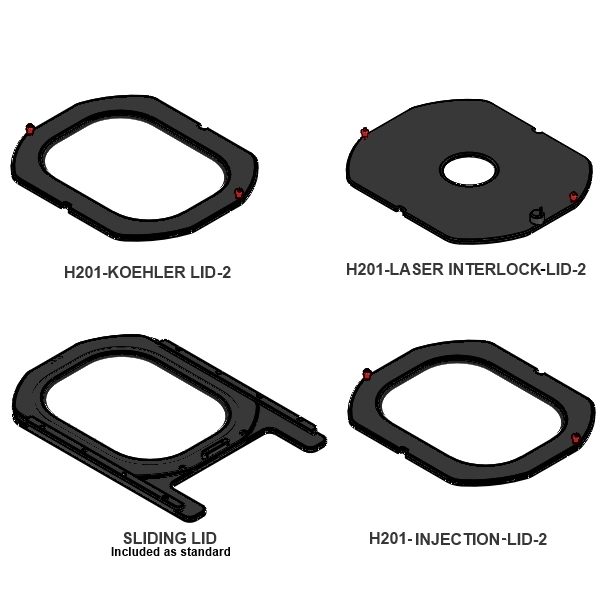

H201-NIKON-TI-SR - Available Lids

H201-NIKON-TI-SR- Dimensions with Sliding Lid
H201-TI-SR- Dimensions with Koehler Lid

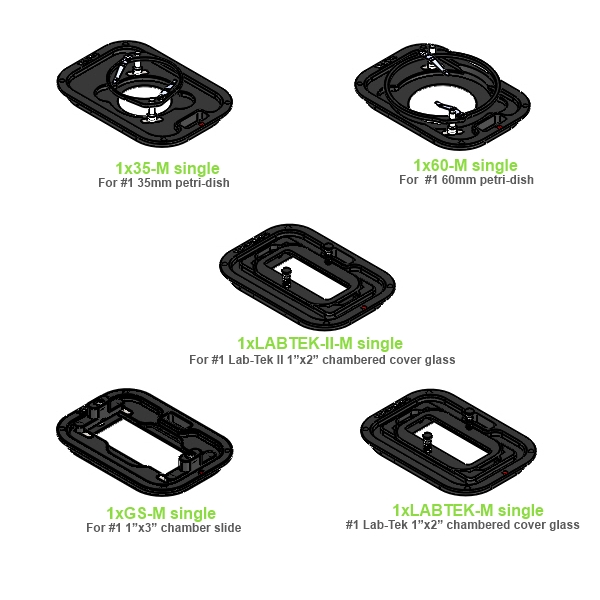

H201-NIKON-TI-SR - Magnetic Inserts
