H301-NIKON-TI-S-ER

Stage compatibility: screws onto Nikon stage TI-S-E and Ti-S-ER - it includes fixing tool TIPA- comes with Sliding Lid

Magnetic inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates (without addition of inserts)
Features:
  • Sliding lid for easy pipetting
  • Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
  • Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
  • Magnets allow easy interchange chamber inserts
  • It contains also an insert for oil immersion imaging
  • Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

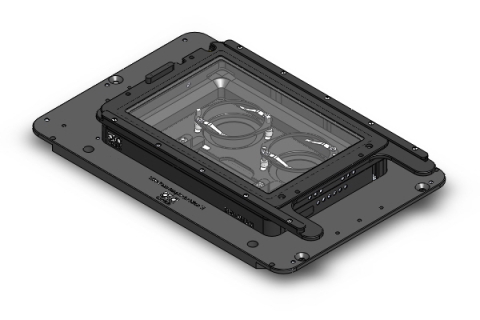

H301-NIKON-TI-S-ER - slim profile

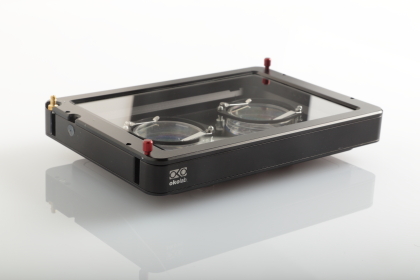

Koehler illumination ?

Remove the chamber riser and use the Koehler Lid

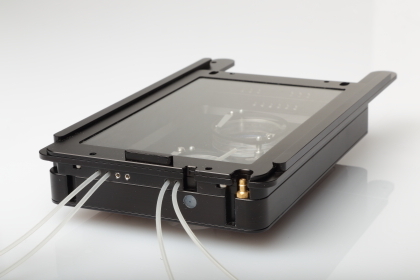

H301-NIKON-TI-S-ER - perfusion holes

Perfusion ?

Each chamber features up to 12 holes for inlet and outler of perfusion tubings

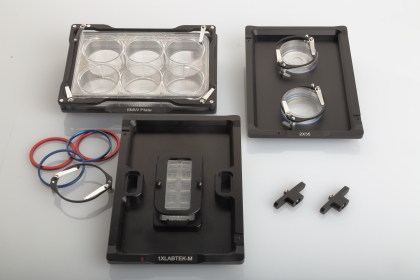

Chamber Inserts and Sample Locks - magnetic

Different sample holder ?

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

Keep the sample in the correct position by using the Magnetic Locks





Available Inserts

6MW 6 well plates 6-MW.JPG
12MW 12 well plates 12-MW.JPG
24MW 24 well plates 24MW.JPG
24MW-NUNC 24-well NUNC/GREINER plates 24MW-NUNC.JPG
48MW 48-well plates 48MW.JPG
96MW 96-well plates. Includes MW-OIL 96MW.JPG
MW-OIL Open frame to image multi well plates with oil immersion objectives MW-OIL.JPG
1x35-M #1 35mm Petri-dish 1x35-M.JPG
1xGS-M #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG
1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG
1x60-M #1 60mm Petri-dish 1x60-M.JPG
1xT25-M #1 Nunc and Greiner T25 flask 1xT25-M.JPG
2x35-M #2 35mm Petri-dish 2x35-M.JPG
2xGS-M #2 1x3in. chamberslides 2xGS-M.JPG
2xLABTEK-M #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG
2xLABTEK-II-M #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG
2x60-M #2 60mm Petri-dish 2x60-M.JPG
4x35-M #4 35mm Petri-dish 4x35-M.JPG
GS35-M #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG
LABTEK-35-M #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG
LABTEK-II-35-M #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG
LABTEK-60-M #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG
LABTEK-II-60-M #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG
GS60-M #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG
6035-M #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

H301-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H301-KOEHLER-LID.JPG
H301-INJECTION-LID Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H301-INJECTION-LID.JPG
H301-LASER-INTERLOCK-LID Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H301-LASER-INTERLOCK-LID.JPG

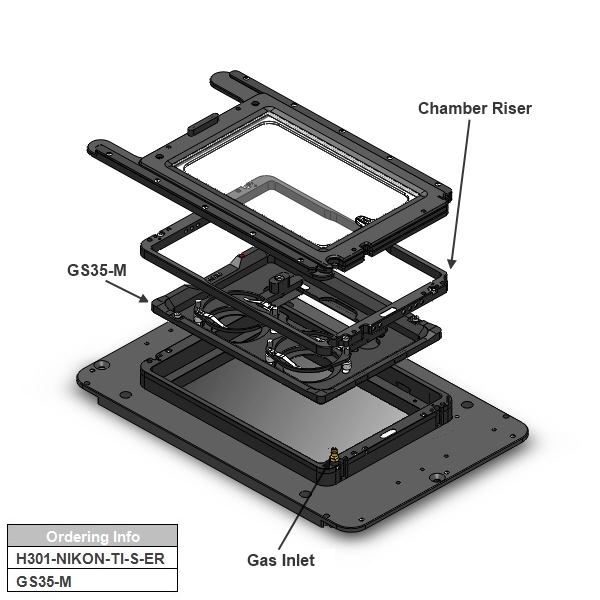

H301-NIKON-TI-S-ER-[SLIDING LID]-600x600.jpg
H301-NIKON-TI-S-ER with Sliding Lid

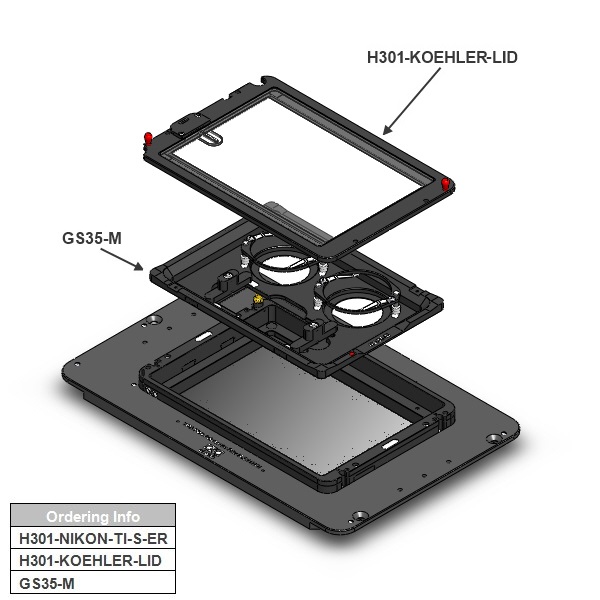

H301-NIKON-TI-S-ER-[KOEHLER LID]_600x600.jpg
H301-NIKON-TI-S-ER with Koehler Lid
H301-NIKON-TI-S-ER - Available Lids
H301-K-FRAME-[SLIDING LID]-[DIMENSIONS]_600x600.jpg
H301-NIKON-TI-S-ER with Sliding Lid - Dimensions - TIPA plate adapter not reported
H301-K-FRAME-[KOEHLER LID]-[DIMENSIONS]_600x600.jpg
H301-NIKON-TI-S-ER with Koehler Lid - Dimensions - TIPA plate adapter not reported

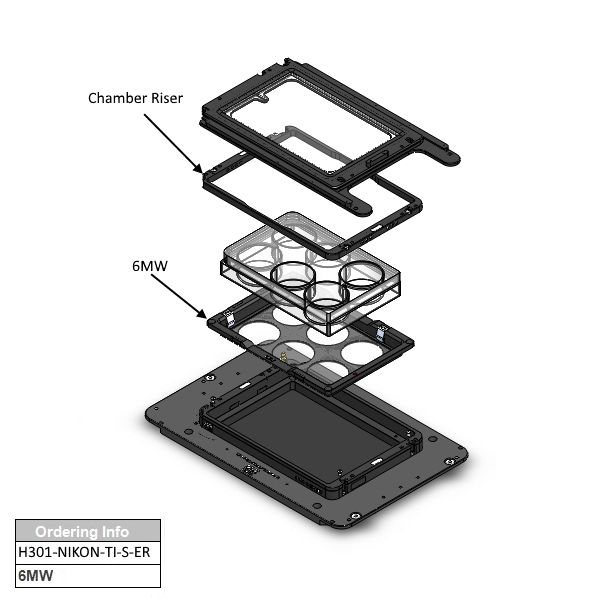

H301-NIKON-TI-S-ER - 6MW Plate - requires chamber riser

H301-NIKON-TI-S-ER - Magnetic inserts
H301-NIKON-TI-S-ER - Magnetic inserts
H301-NIKON-TI-S-ER - Magnetic Locks
