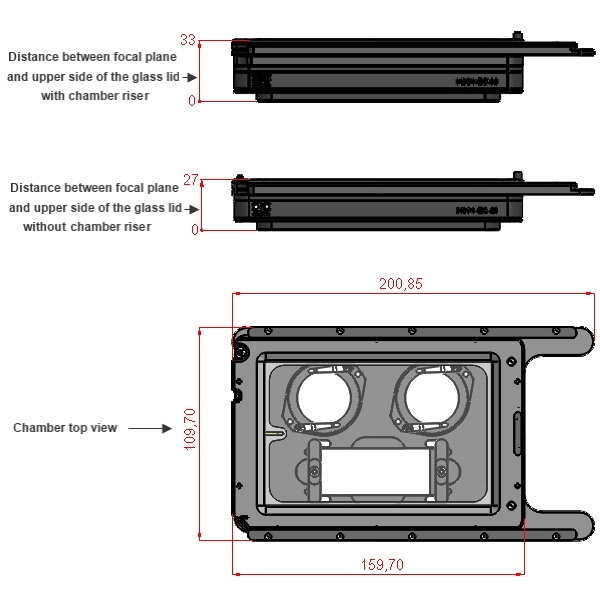

Stage compatibility: screws onto Mad City Labs Z100/Z500 Piezo Z-stages - comes with Sliding Lid
Magnetic interchangeable inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides

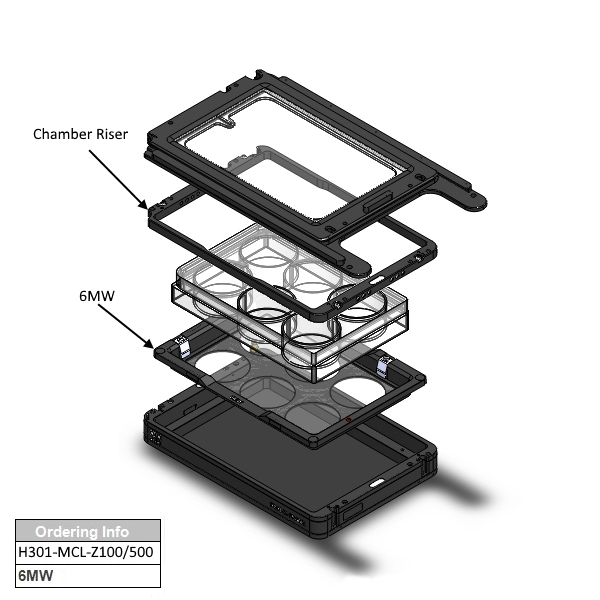

- 6-12-24-48-96 MW plates (without addition of inserts)

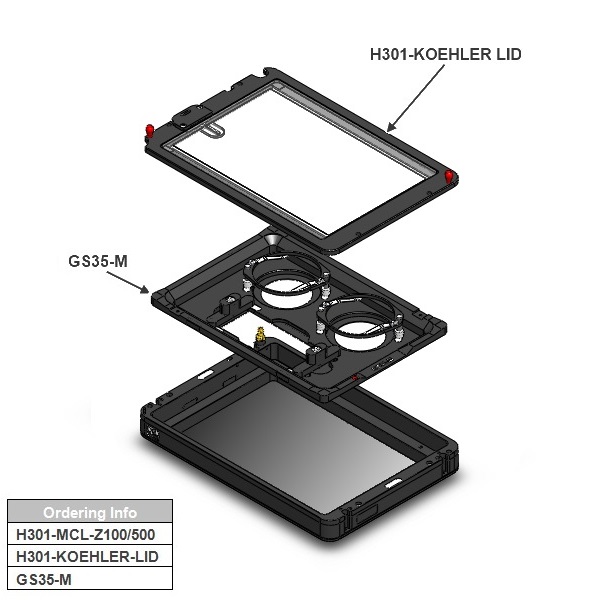

- Koelher lid for working under Koehler illumination.
- Optional lids available for Laser Safety, Injection during imaging

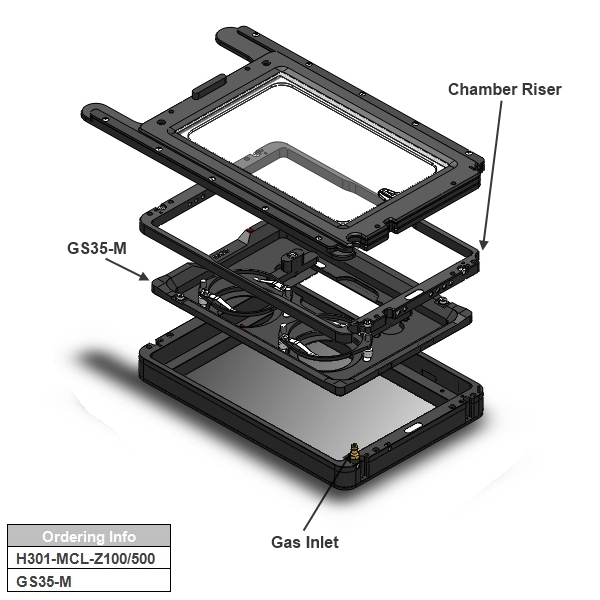

- Flexible chamber height thanks to the removable chamber riser required to fit standard multiwell plates or to perform perfusion
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri and Slides and MW in correct position inside the chamber
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in chamber riser

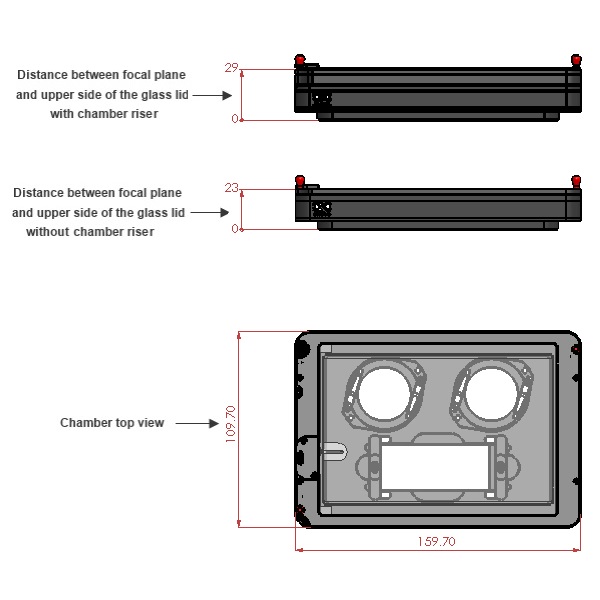

Koehler illumination ?Remove the chamber riser and use the Koehler Lid
Each chamber features up to 12 holes for inlet and outler of perfusion tubings
Different sample holder ?
Change the chamber insert. It is a 5 seconds task with the magnetic sample holders
Keep the sample in the correct position by using the Magnetic Locks
