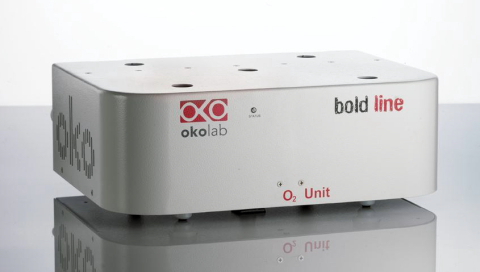

O2 Unit-BL [1-20]

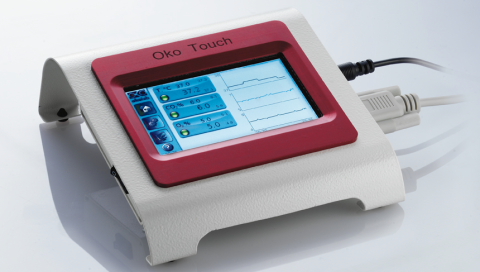

O2-UNIT-BL connects to any Bold Line Temperature Controller and is operated by the touch screen interface OKO-TOUCH.

  • Oxygen is  digitally regulated by mixing Air with Nitrogen: O2 range: 1-20%

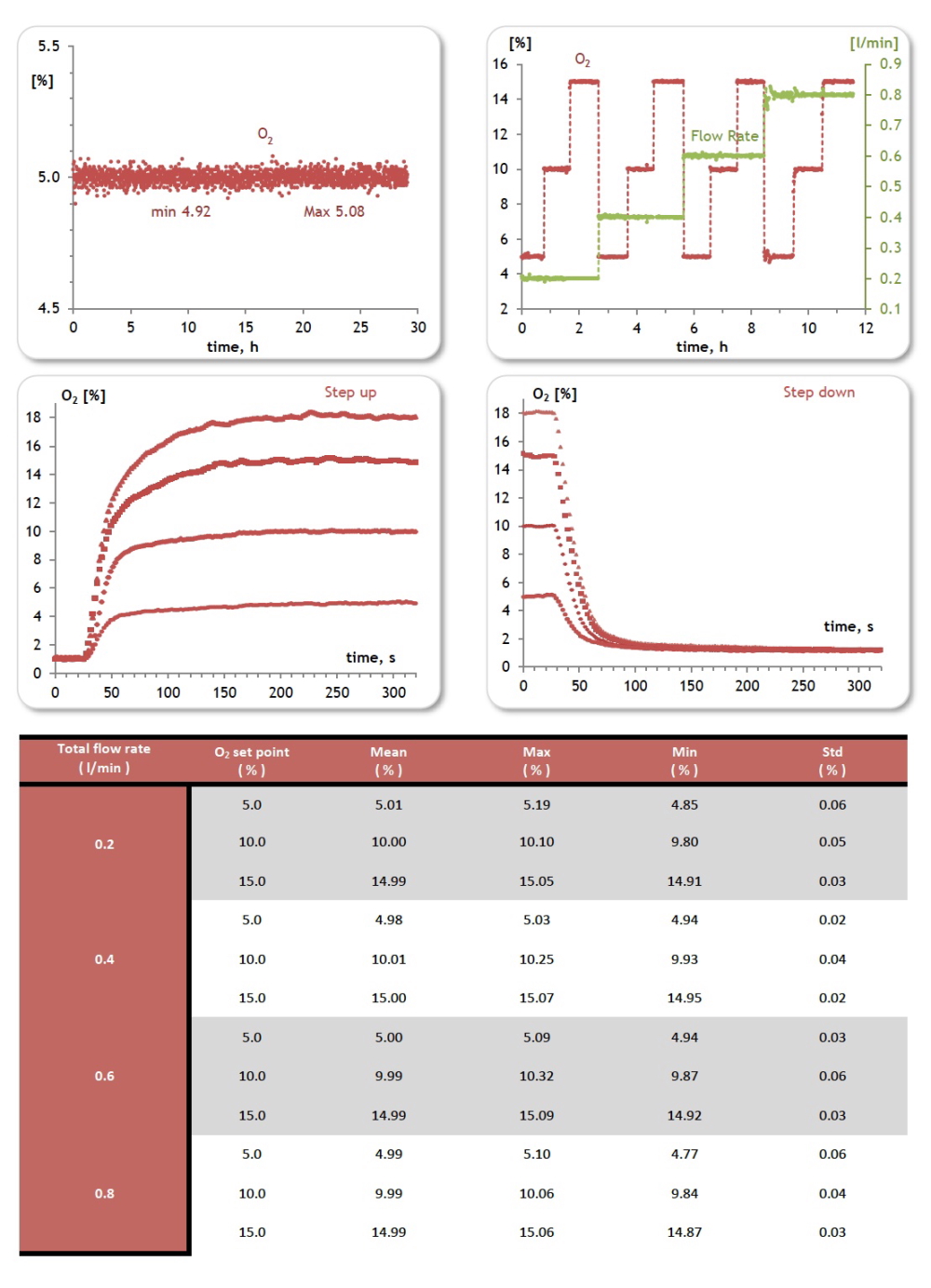

  • Accuracy: ± 0.1%
  • Set Point Resolution: 0.1%; Repeatability: 0.05% of O2 concentration
  • Output flow rate: 0 - 0.8 Nl/min at ambient pressure
  • O2 sensor: 10 year-life zirconium oxide sensor
  • O2 sensor calibration routine with external meter or calibration gas

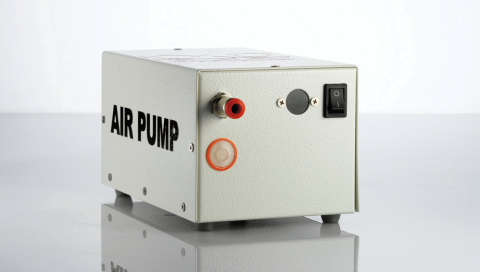

  • Compatible with OKO-AIR-PUMP-BL for operation with background air

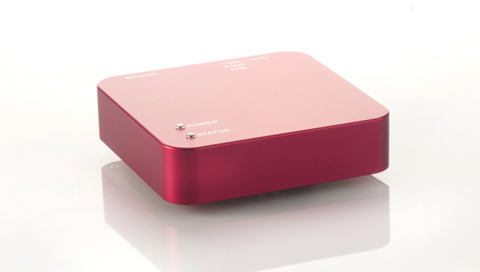

  • Compatible with Smart Box for data logging and remore operation

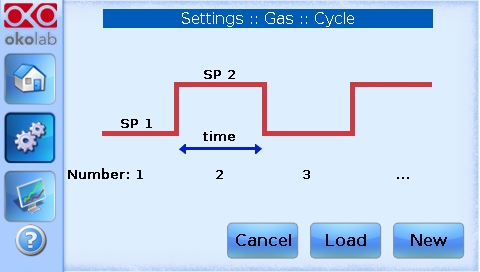

  • Programmable O2 cycles
  • Drivers available for: NiS Elements, Metamorph, Micromanager
  • SDK available for integration in third party software
  • TTL communication: product code O2-UNIT-BL-TTL
