H301-K-FRAME

Stage compatibility: fits in the following stages with 160x110 (k-frame) opening - comes with Sliding Lid
  • ASI: all models, including z-piezo
  • Leica: all models with 160x110 opening
  • Ludl: all models with 160x110 opening
  • Marzhauser: all models
  • Olympus: all models with 160x110 opening
  • Prior: H107
  • Zeiss: all models with 160x110 opening
Magnetic interchangeable inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates (without addition of inserts)

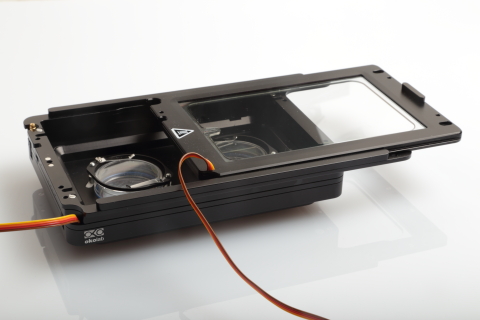

H301-K-FRAME - slided_480x320.JPG

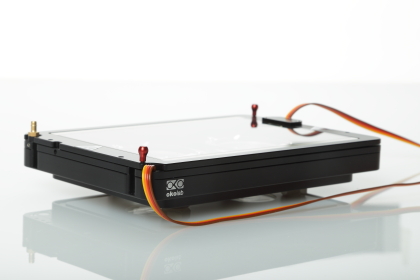

H301-K-FRAME - slim profile with Koehler Lid

Koehler illumination ?

Remove the chamber riser and use the Koehler Lid

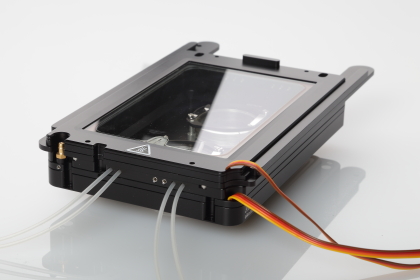

H301-K-FRAME - perfusion holes

Perfusion ?

Each chamber features up to 12 holes for inlet and outler of perfusion tubings

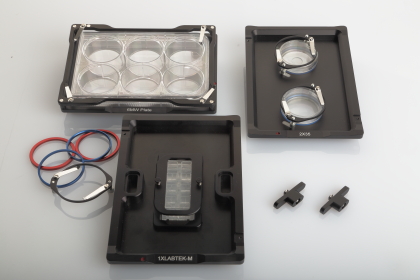

Chamber Inserts and Sample Locks - magnetic

Different sample holder ?

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

Keep the sample in the correct position by using the Magnetic Locks





Available Inserts

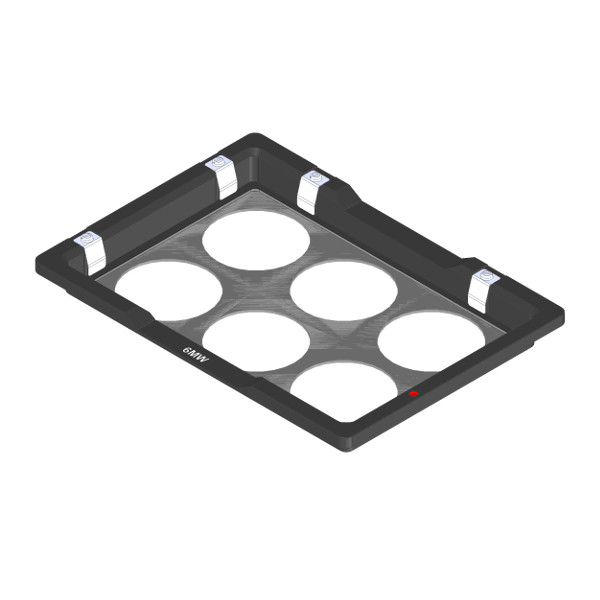

6MW 6 well plates 6-MW.JPG
12MW 12 well plates 12-MW.JPG

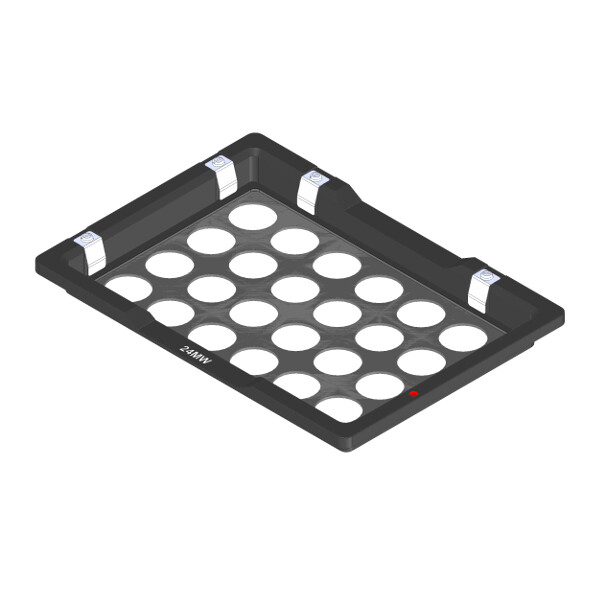

24MW 24 well plates 24MW.JPG
24MW-NUNC 24-well NUNC/GREINER plates 24MW-NUNC.JPG

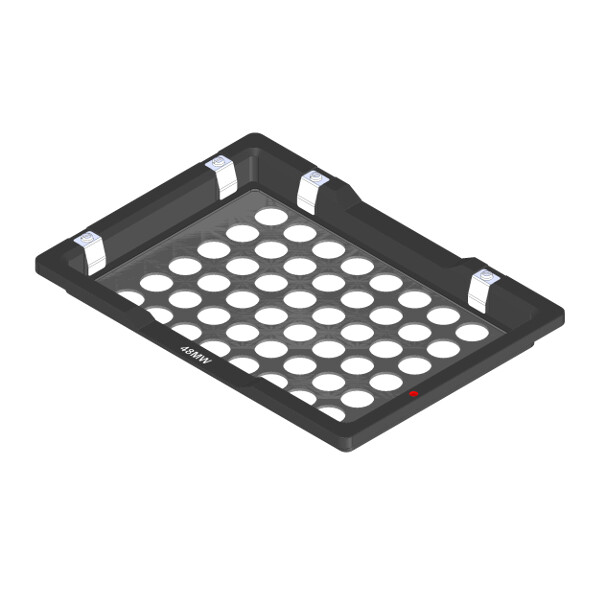

48MW 48-well plates 48MW.JPG

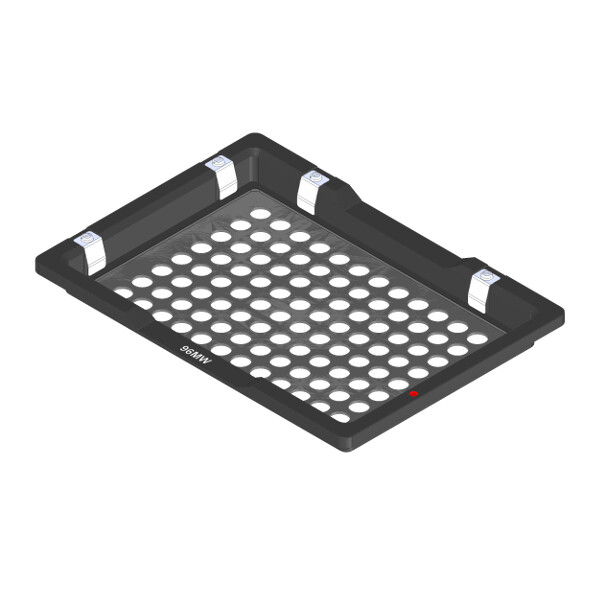

96MW 96-well plates. Includes MW-OIL 96MW.JPG

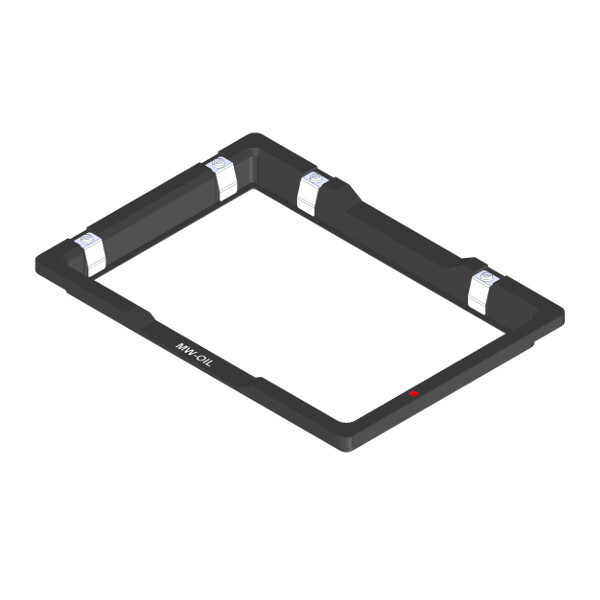

MW-OIL Open frame to image multi well plates with oil immersion objectives MW-OIL.JPG

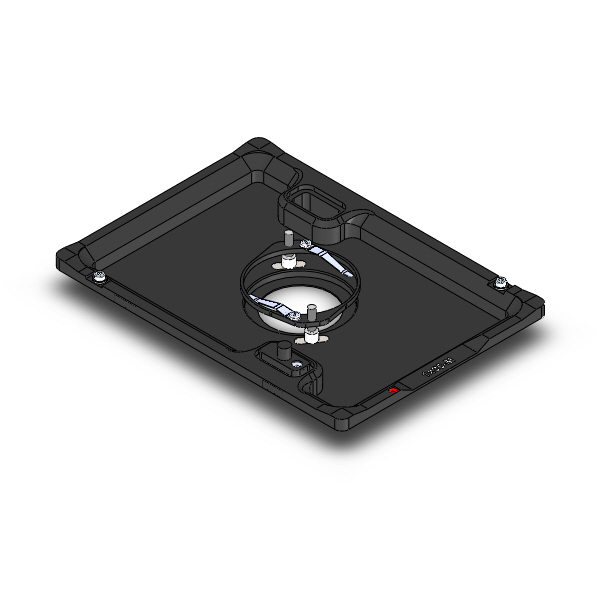

1x35-M #1 35mm Petri-dish 1x35-M.JPG

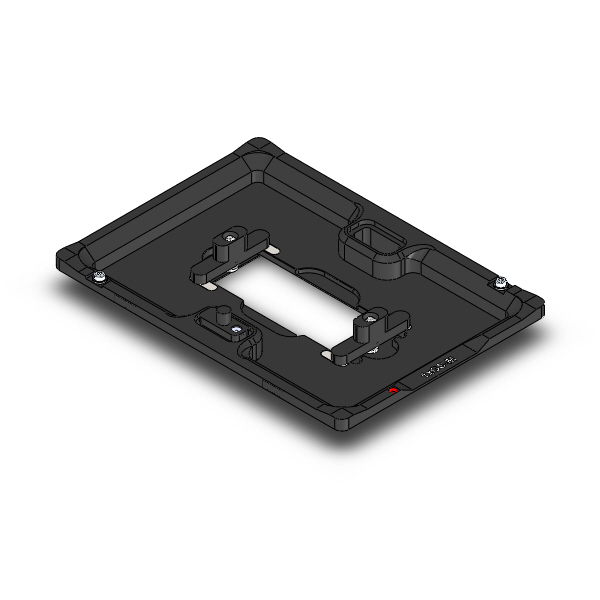

1xGS-M #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG

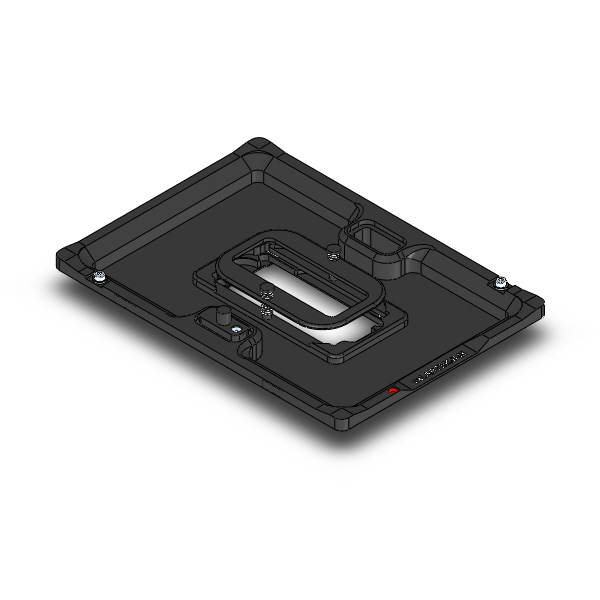

1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG

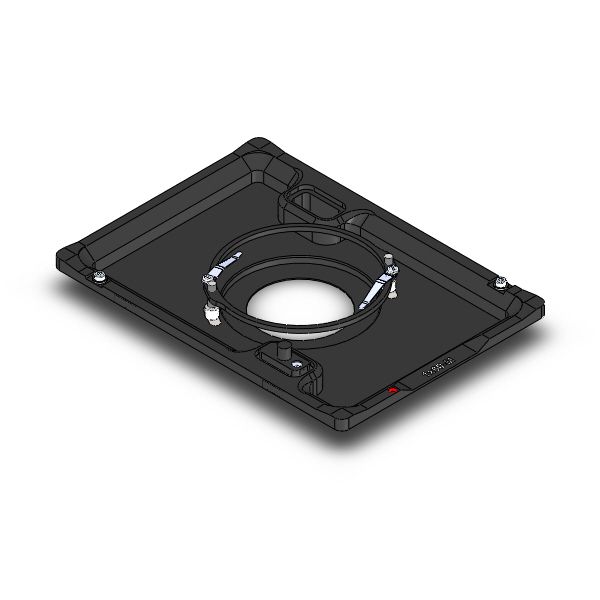

1x60-M #1 60mm Petri-dish 1x60-M.JPG

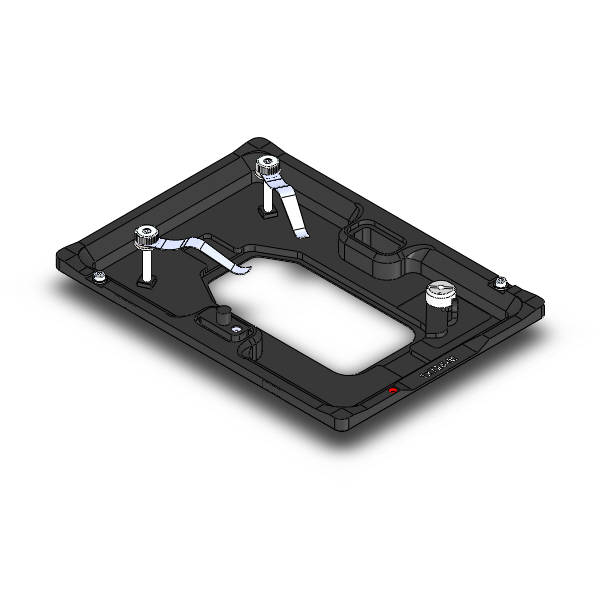

1xT25-M #1 Nunc and Greiner T25 flask 1xT25-M.JPG

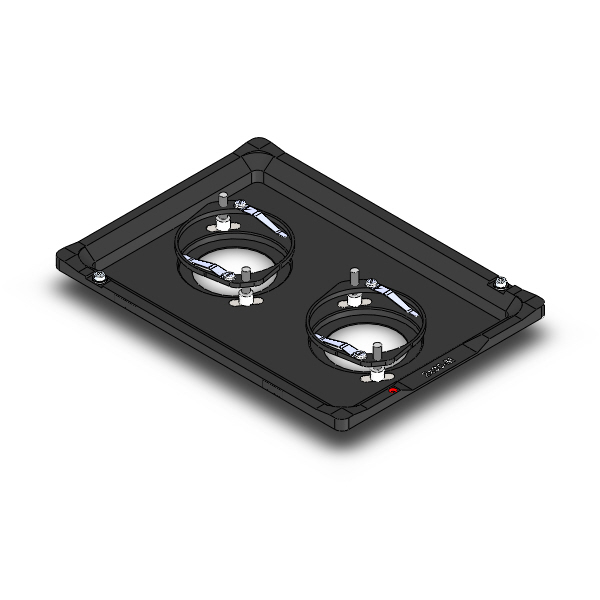

2x35-M #2 35mm Petri-dish 2x35-M.JPG

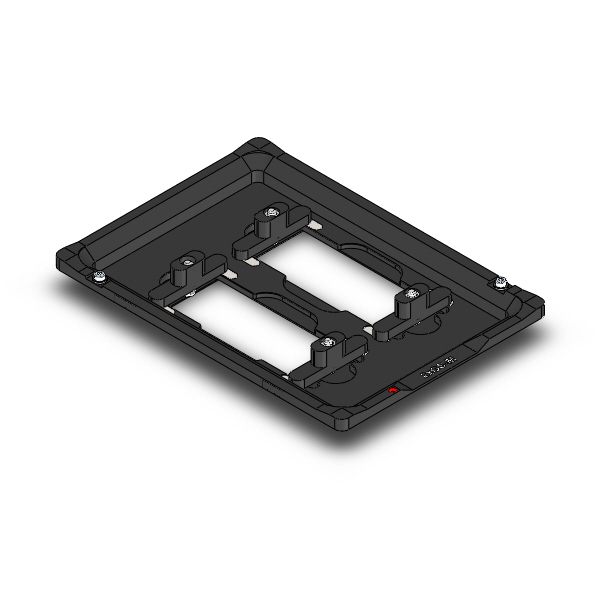

2xGS-M #2 1x3in. chamberslides 2xGS-M.JPG

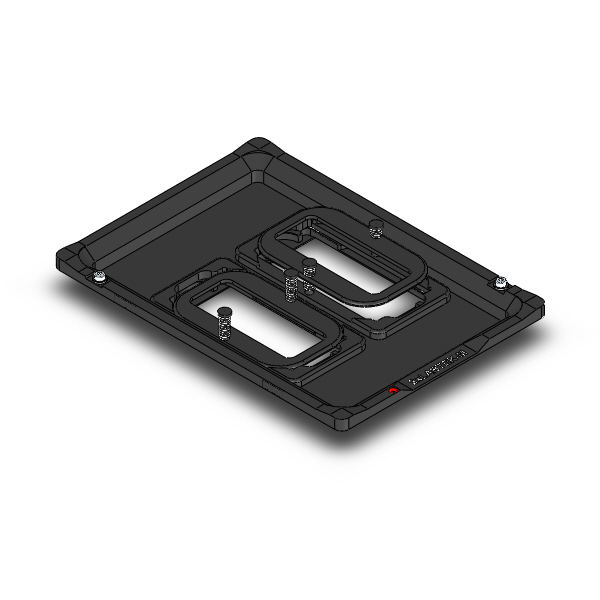

2xLABTEK-M #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG

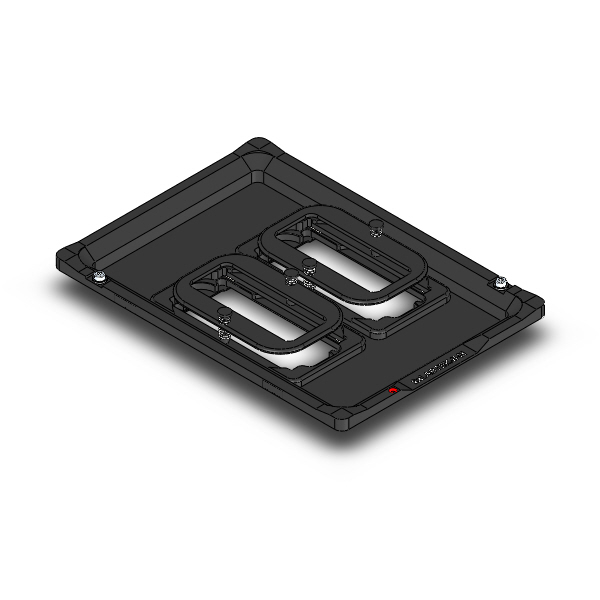

2xLABTEK-II-M #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG

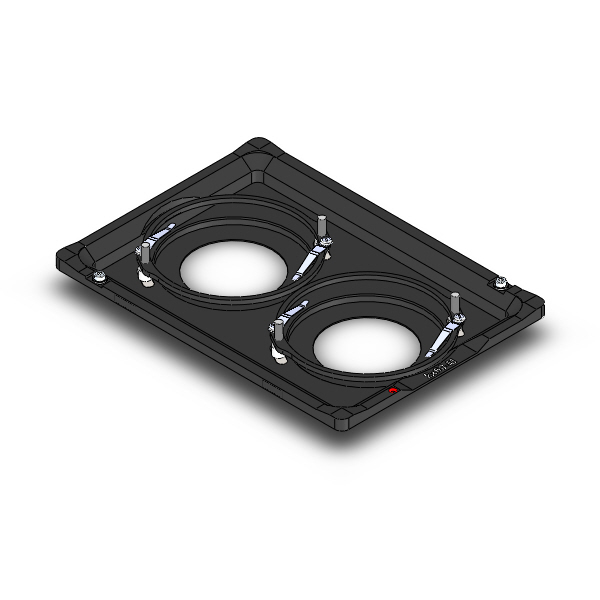

2x60-M #2 60mm Petri-dish 2x60-M.JPG

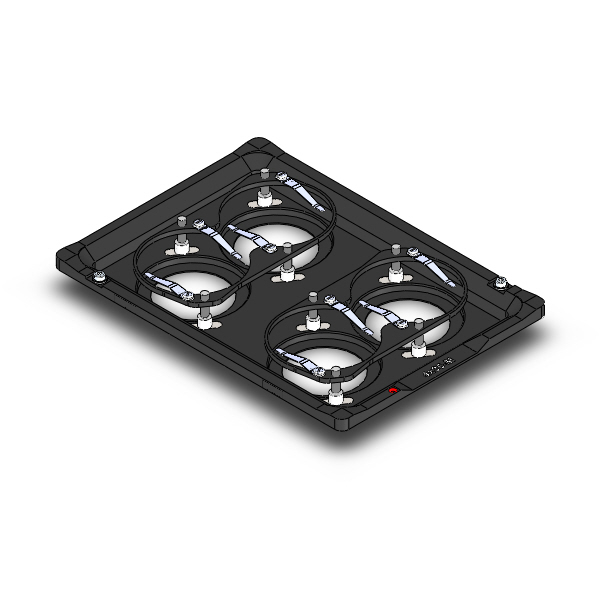

4x35-M #4 35mm Petri-dish 4x35-M.JPG

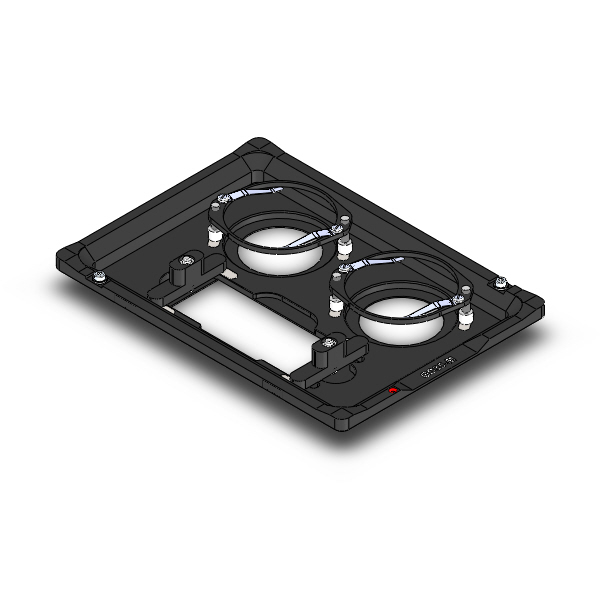

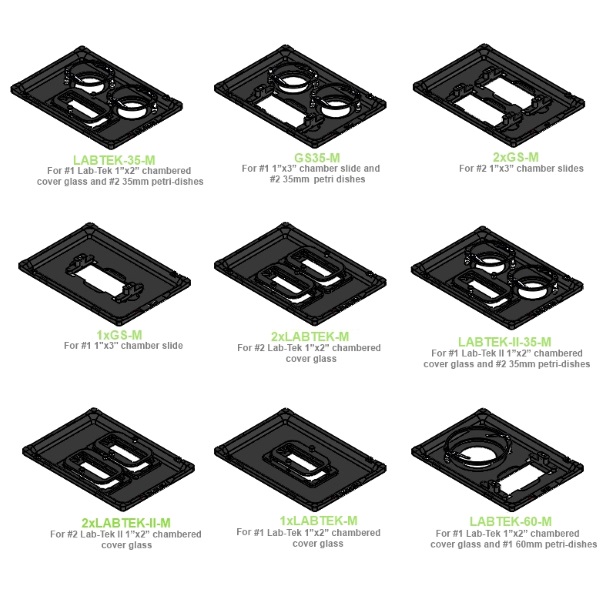

GS35-M #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG

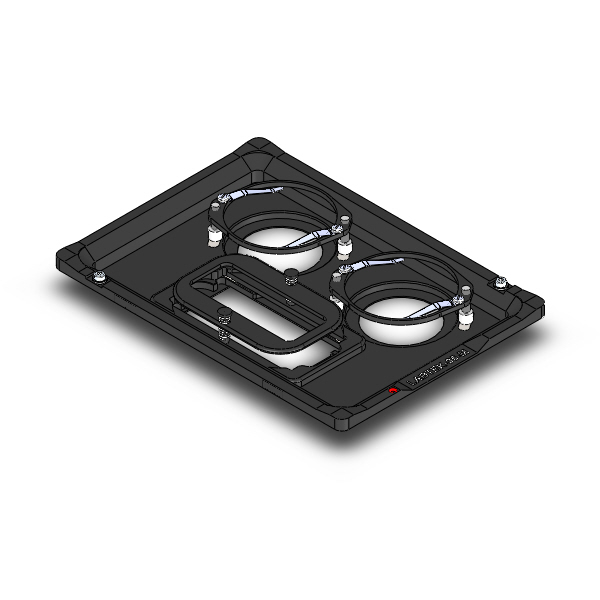

LABTEK-35-M #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG

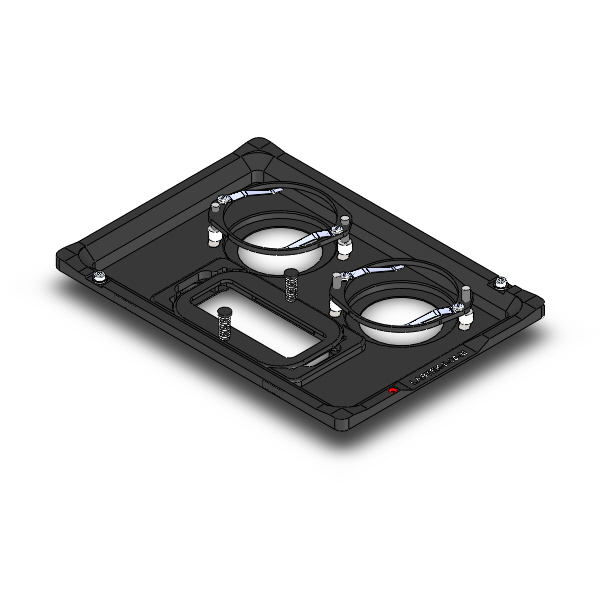

LABTEK-II-35-M #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG

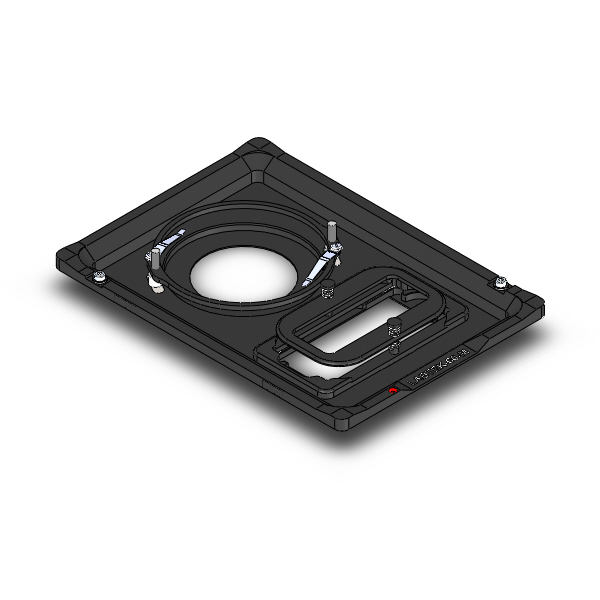

LABTEK-60-M #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG

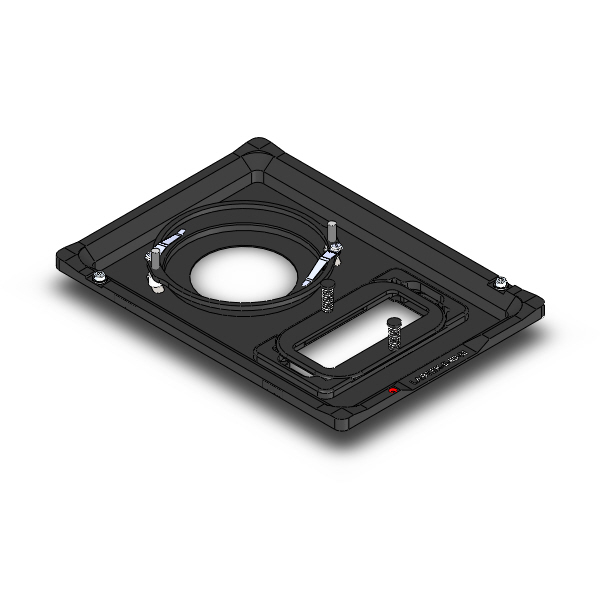

LABTEK-II-60-M #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG

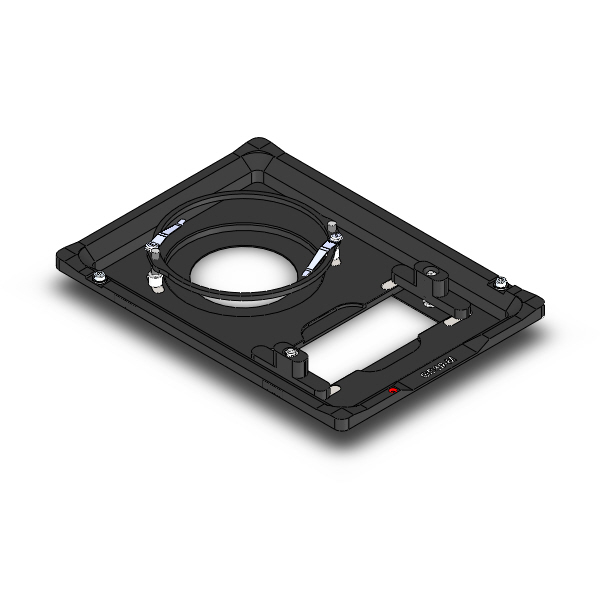

GS60-M #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG

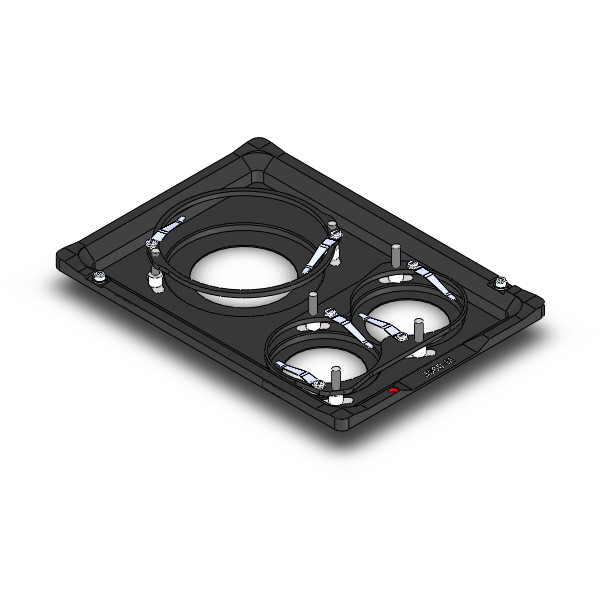

6035-M #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

H301-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H301-KOEHLER-LID.JPG

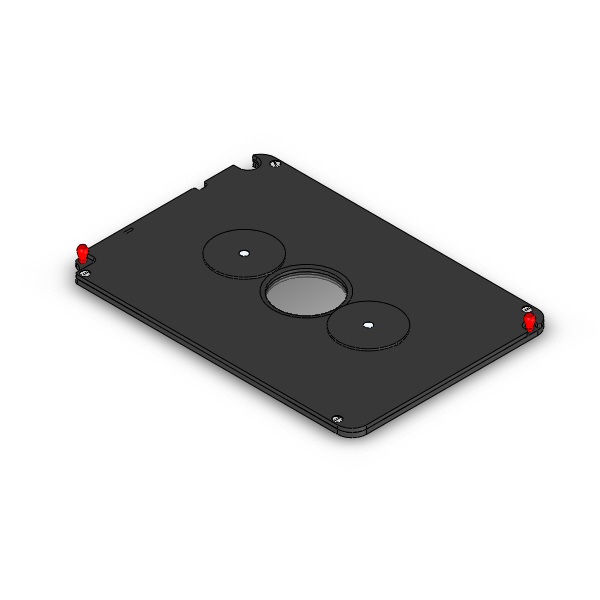

H301-INJECTION-LID Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H301-INJECTION-LID.JPG

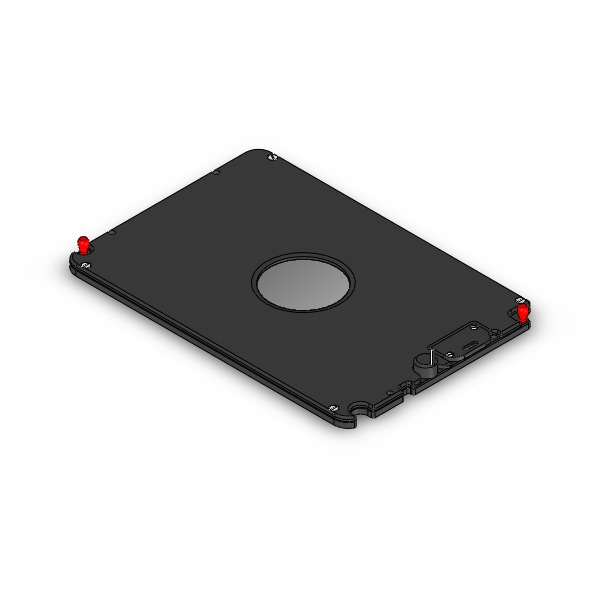

H301-LASER-INTERLOCK-LID Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H301-LASER-INTERLOCK-LID.JPG

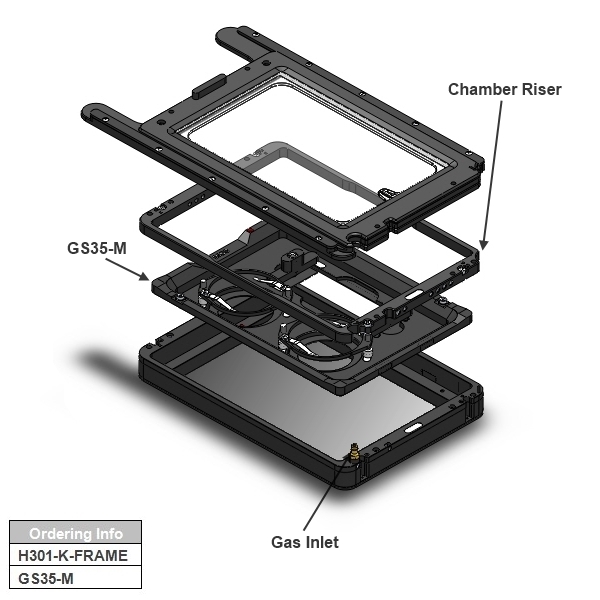

H301-K-FRAME-[SLIDING LID]_600x600 (2).jpg

H301-K-FRAME with Sliding Lid

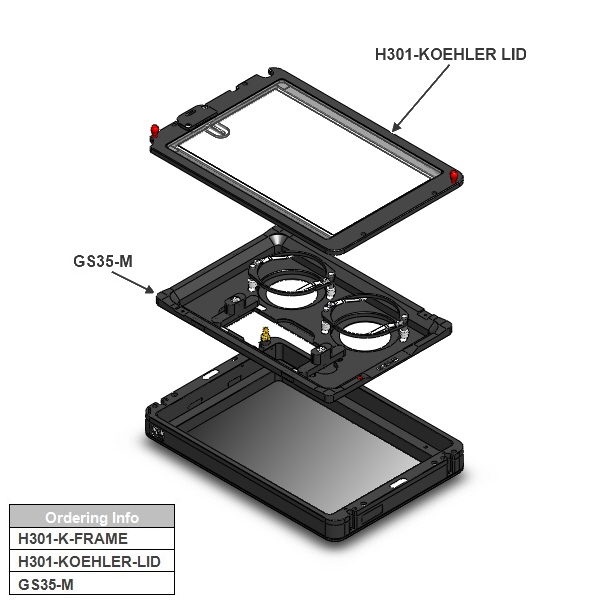

H301-K-FRAME-[KOEHLER LID]_600x600.jpg

H301-K-FRAME with Koehler Lid


H301-K-FRAME - Available Lids

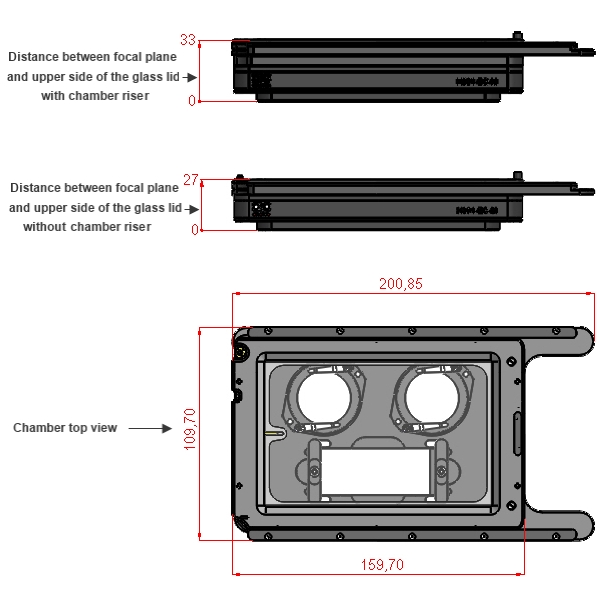

H301-K-FRAME-[SLIDING LID]-[DIMENSIONS]_600x600.jpg

H301-K-FRAME with Sliding Lid - Dimensions

H301-K-FRAME-[KOEHLER LID]-[DIMENSIONS]_600x600.jpg

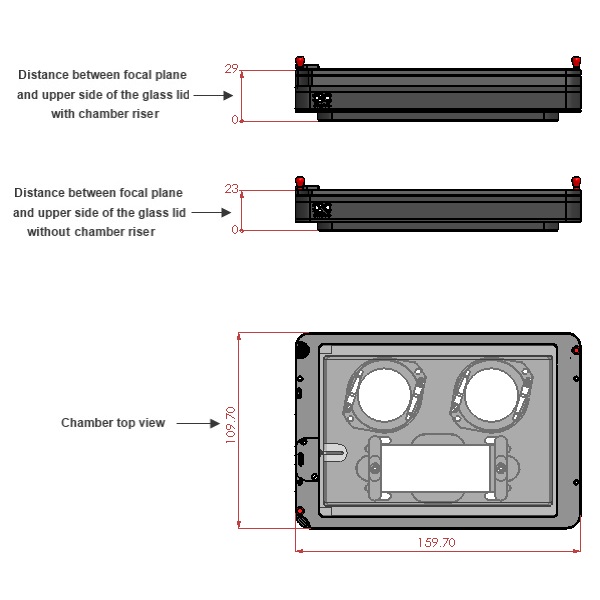

H301-K-FRAME with Koehler Lid - Dimensions

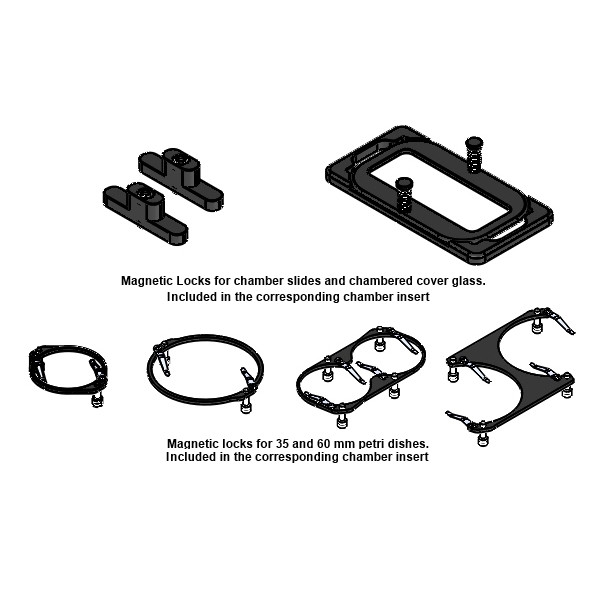

H301-K-FRAME-[MAGNETIC LOCKS]_600x600.jpg

H301-K-FRAME - Magnetic sample locks


H301-K-FRAME - Magnetic inserts


H301-K-FRAME - Magnetic insterts

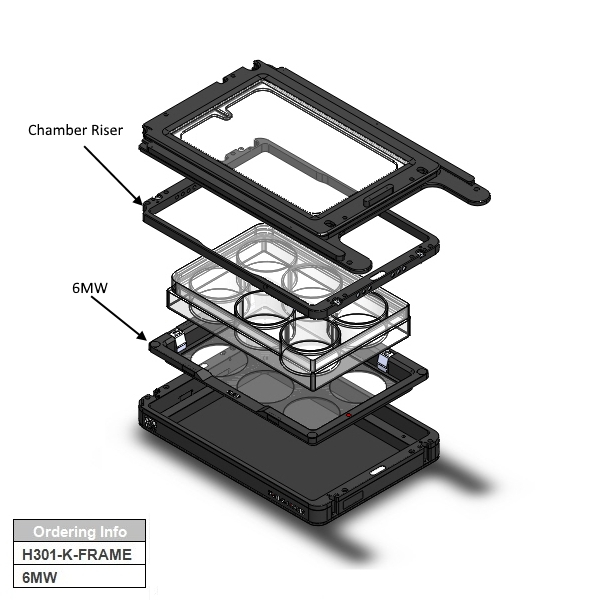

H301-K-FRAME - 6MW Plate - requires chamber-riser
